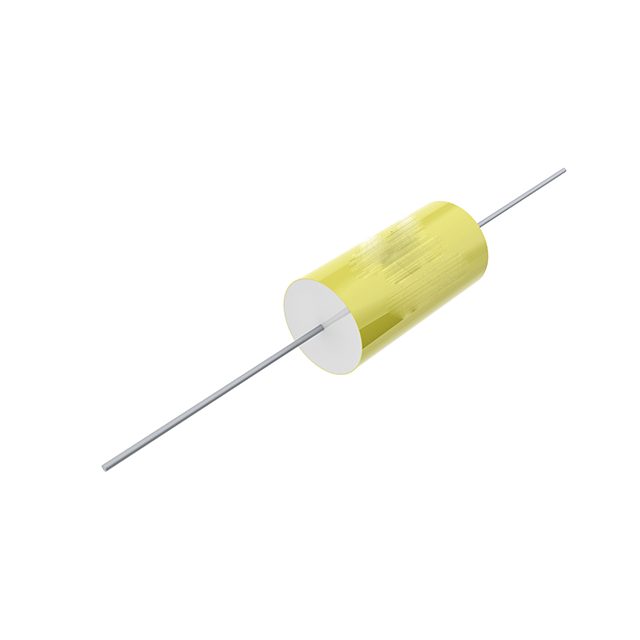

A70IF2100AA00K
ObsoleteKEMET
CAP FILM 10000PF 10% 250VDC AXL
Deep-Dive with AI
Search across all available documentation for this part.
A70IF2100AA00K
ObsoleteKEMET
CAP FILM 10000PF 10% 250VDC AXL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A70IF2100AA00K |
|---|---|
| Applications | High Pulse, DV/DT, Power Factor Correction (PFC), High Frequency, Switching |
| Capacitance | 10000 pF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Size / Dimension [diameter] | 5 mm |
| Size / Dimension [diameter] | 0.197 " |
| Size / Dimension [x] | 0.433 in |
| Size / Dimension [x] | 11 mm |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 200 V |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.21 | |
| 10 | $ 2.46 | |||
| 50 | $ 2.22 | |||
| 100 | $ 1.91 | |||
| 500 | $ 1.50 | |||
| 1500 | $ 1.40 | |||
| 3000 | $ 1.34 | |||
Description
General part information
A70IF Series
10000 pF Film Capacitor 200V 250V Polypropylene (PP), Metallized Axial
