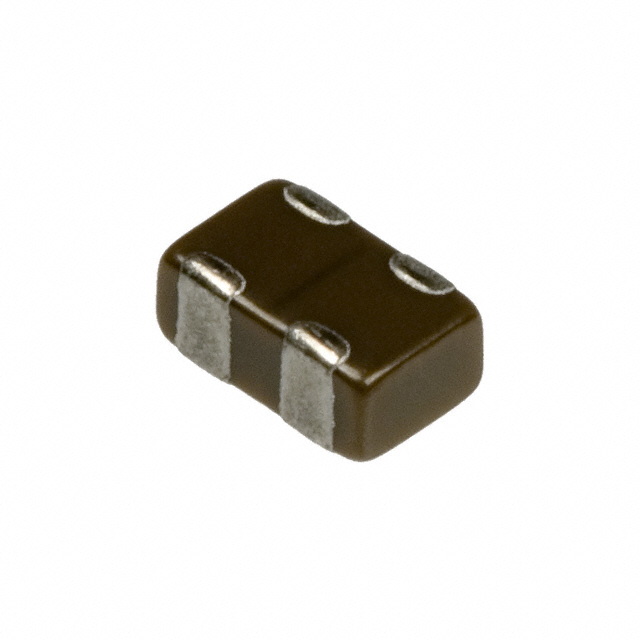

E2K212BJ105MD-T
ObsoleteTAIYO YUDEN
CAP ARRAY 1.0UF 16V X7R 0805
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E2K212BJ105MD-T
ObsoleteTAIYO YUDEN
CAP ARRAY 1.0UF 16V X7R 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E2K212BJ105MD-T |
|---|---|
| Capacitance | 1 µF |
| Circuit Type | Isolated |
| Dielectric Material | Ceramic |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Mounting Type | Surface Mount |
| Number of Capacitors | 2 |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 (2012 Metric) |
| Temperature Coefficient | X7R |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
E2K212BJ Series
1µF Isolated Capacitor 2 Array 16 V X7R 0805 (2012 Metric)
Documents
Technical documentation and resources
