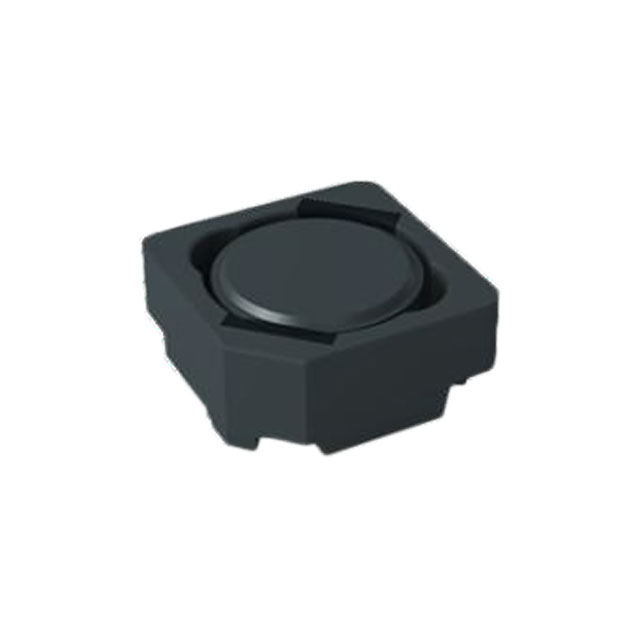

MBH10145C-330MA=P3

Obsolete

Murata Power Solutions Inc.

FIXED IND 33UH 2.1A 82 MOHM SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND 33UH 2.1A 82 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Current Rating (Amps)	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ratings	DC Resistance (DCR)	Material - Core	Current - Saturation (Isat)	Tolerance	Inductance Frequency - Test	Package / Case	Shielding	Type
Murata Power Solutions Inc. MBH10145C-330MA=P3	Surface Mount	2.1 A	33 µH	0.189 "	4.8 mm	10.4 mm	0.409 in	0.409 "	10.4 mm	AEC-Q200	82 mOhm	Ferrite	1.7 A	20 %	100 kHz	Nonstandard	Shielded	Drum Core Wirewound
Murata Power Solutions Inc. MBH10145C-5R6NA=P3	Surface Mount	3.7 A	5.6 µH	0.189 "	4.8 mm	10.4 mm	0.409 in	0.409 "	10.4 mm	AEC-Q200	22 mOhm	Ferrite	4.1 A	30 %	100 kHz	Nonstandard	Shielded	Drum Core Wirewound
Murata Power Solutions Inc. MBH10145C-470MA=P3	Surface Mount	1.7 A	47 µH	0.189 "	4.8 mm	10.4 mm	0.409 in	0.409 "	10.4 mm	AEC-Q200	100 mOhm	Ferrite	1.6 A	20 %	100 kHz	Nonstandard	Shielded	Drum Core Wirewound
Murata Power Solutions Inc. MBH10145C-220MA=P3	Surface Mount		22 µH	0.189 "	4.8 mm	10.4 mm	0.409 in	0.409 "	10.4 mm	AEC-Q200	60 mOhm	Ferrite	2.2 A	20 %	100 kHz	Nonstandard	Shielded	Drum Core Wirewound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

33 µH Shielded Drum Core, Wirewound Inductor 2.1 A 82mOhm Nonstandard
