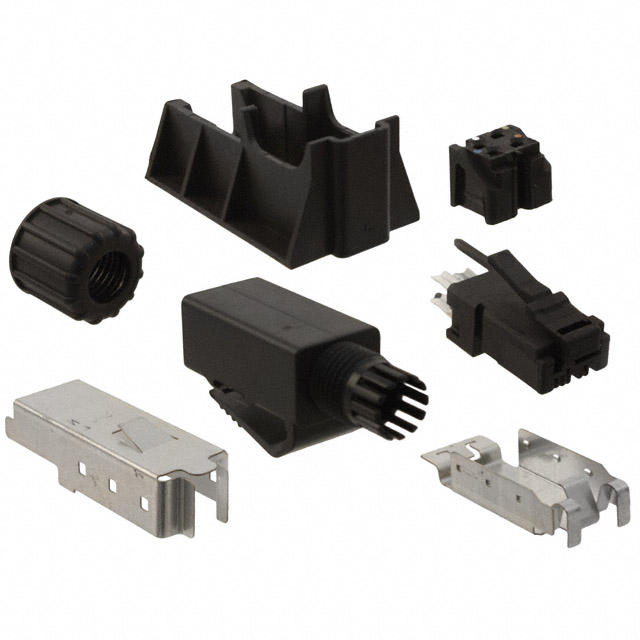

XS6G-T421-1
ActiveOmron Electronics Inc-EMC Div
CONN MOD PLUG 8P8C
Deep-Dive with AI
Search across all available documentation for this part.
XS6G-T421-1
ActiveOmron Electronics Inc-EMC Div
CONN MOD PLUG 8P8C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XS6G-T421-1 |
|---|---|
| Cable Type | Round Cable, Solid, Stranded Wires |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 55.2 µin |
| Contact Finish Thickness | 1.4 µm |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 3 A |
| Housing Material | Polyamide (PA), Nylon |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length | 2.07 in |
| Length | 52.58 mm |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Ratings | Cat5e |
| Termination | IDC |
| Voltage Rating | 30 VDC |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.18 | |
| 16 | $ 40.54 | |||
| 32 | $ 38.98 | |||
| 64 | $ 37.68 | |||
| 112 | $ 35.60 | |||
| 256 | $ 34.56 | |||
Description
General part information
XS6G-T421 Series
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Cat5e IDC
