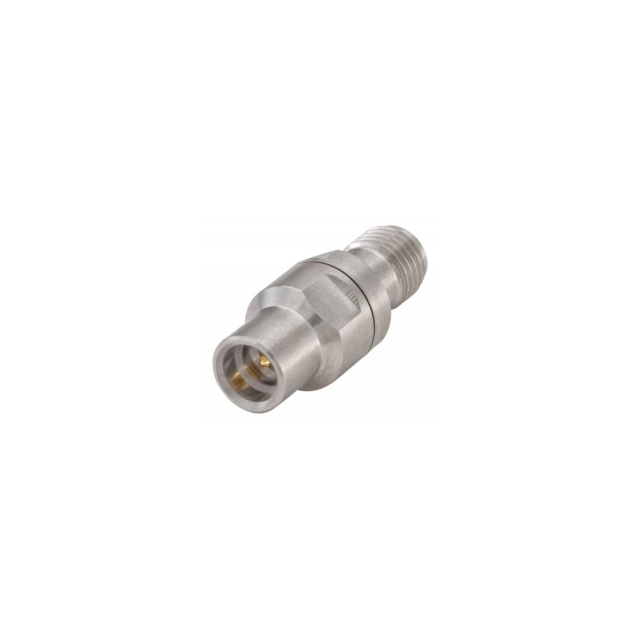

119S132-K00S5

Active

Rosenberger

PSMP ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PSMP ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	119S132-K00S5

Adapter Series	PSMP to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	PSMP Plug, Male Pin
Convert To (Adapter End)	Female Socket, SMP Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Insertion Loss	0.16 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Insertion Loss	Convert To (Adapter End)	Style	Fastening Type	Mounting Type	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Series	Center Contact Plating	Impedance	Convert From (Adapter End)	Body Material	Center Contact Material	Frequency - Max [Max]	Conversion Type	Mating Cycles	Adapter Type
Rosenberger 119S132-K00S5	0.16 dB	Female Socket SMP Jack	Straight	Snap-On Threaded	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	PSMP to SMA	Gold	50 Ohms	PSMP Plug Male Pin	Stainless Steel	Beryllium Copper	10 GHz	Between Series	500	Plug to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector PSMP Plug, Male Pin To SMP Jack, Female Socket 50 Ohms
