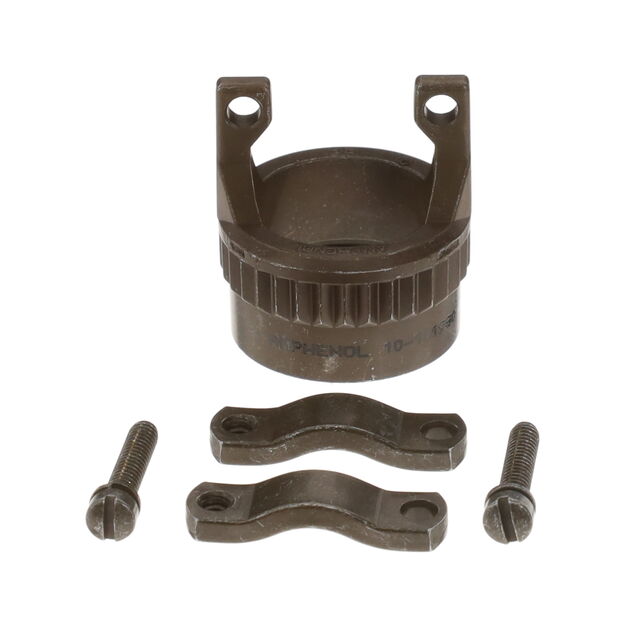

10-101980-163

Active

Amphenol Industrial Operations

CONN CABLE CLAMP SZ16 OLIV 1-20

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN CABLE CLAMP SZ16 OLIV 1-20

Technical Specifications

Parameters and characteristics for this part

Specification	10-101980-163

Cable Exit	180 °
Cable Opening [custom]	15.6 mm
Cable Opening [custom]	0.614 in
Color	Olive Drab
Diameter - Outside [diameter]	26.34 mm
Diameter - Outside [diameter]	1.037 in
Features	Clamp Screws, Strain Relief
For Use With/Related Products	Class A and P Connectors
Plating	Cadmium
Shell Size - Insert	16
Thread Size	1-20 UNEF
Type	Cable Clamp

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	For Use With/Related Products	Type	Thread Size	Color	Cable Exit	Features	Plating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]
Amphenol Industrial Operations 10-101980-203	1.281 in	32.54 mm	20	Class A and P Connectors	Cable Clamp	1 3/16-18 UNEF	Olive Drab	180 °	Clamp Screws Strain Relief	Cadmium	0.74 in	18.8 mm
Amphenol Industrial Operations 10-101980-223	1.408 "	35.76 mm	22	Class A and P Connectors	Cable Clamp	1 7/16-18 UNEF	Olive Drab	180 °	Clamp Screws Strain Relief	Cadmium			23.57 mm	0.928 in
Amphenol Industrial Operations 10-101980-143	0.91 in	23.11 mm	14	Class A and P Connectors	Cable Clamp	7/8-20 UNEF	Olive Drab	180 °	Clamp Screws Strain Relief	Cadmium			14.02 mm	0.552 in
Amphenol Industrial Operations 10-101980-183	1.155 in	29.34 mm	18	Class A and P Connectors	Cable Clamp	1 3/16-18 UNEF	Olive Drab	180 °	Clamp Screws Strain Relief	Cadmium	0.74 in	18.8 mm
Amphenol Industrial Operations 10-101980-103	0.665 in	16.89 mm	10	Class A and P Connectors	Cable Clamp	5/8-24 UNEF	Olive Drab	180 °	Clamp Screws Strain Relief	Cadmium			7.67 mm	0.302 in
Amphenol Industrial Operations 10-101980-163	1.037 in	26.34 mm	16	Class A and P Connectors	Cable Clamp	1-20 UNEF	Olive Drab	180 °	Clamp Screws Strain Relief	Cadmium			15.6 mm	0.614 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Olive Drab Connector Cable Clamp 1-20 UNEF 16
