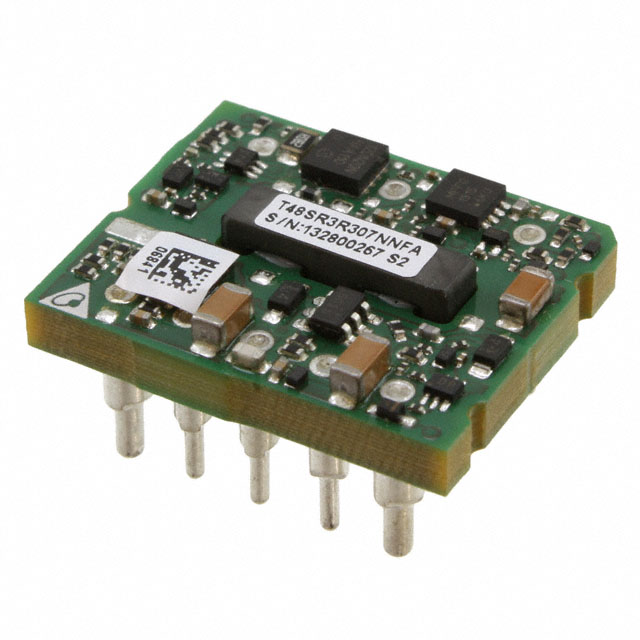

T48SR3R307NNFA
ActiveDelta Electronics
MODULE DC-DC 48VIN 1-OUT 3.3V 7.5A 24.75W 8-PIN 1/32-BRICK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T48SR3R307NNFA
ActiveDelta Electronics
MODULE DC-DC 48VIN 1-OUT 3.3V 7.5A 24.75W 8-PIN 1/32-BRICK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T48SR3R307NNFA |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 7.5 A |
| Efficiency | 86 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module, 1/32 Brick |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 0.92 in |
| Size / Dimension [x] | 23.4 mm |
| Size / Dimension [y] | 0.75 in |
| Size / Dimension [y] | 19.1 mm |
| Size / Dimension [z] | 0.35 " |
| Size / Dimension [z] | 8.9 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 98 | $ 22.78 | |
Description
General part information
T48SR Series
Isolated Module DC DC Converter 1 Output 3.3V 7.5A 36V - 75V Input
