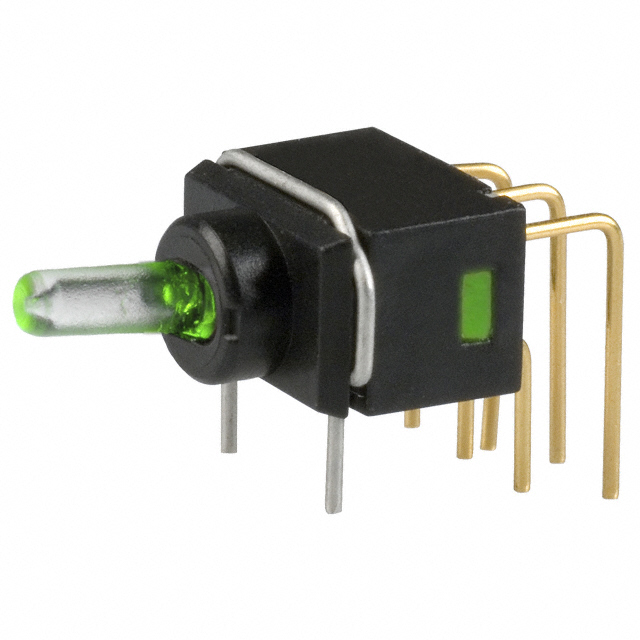

G13JHCF

Active

NKK Switches

ULTRA-MINIATURE FULLY ILLUMINATED TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

ULTRA-MINIATURE FULLY ILLUMINATED TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	G13JHCF

Actuator Length [x]	3.8 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2 VDC, 2.1 VDC
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Actuator Material	Illumination Type, Color	Current Rating (Amps)	Bushing Thread	Illumination Voltage (Nominal)	Termination Style	Actuator Length [x]	Actuator Type	Voltage Rating - AC	Features	Electrical Life	Voltage Rating - DC	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Circuit	Mounting Type
NKK Switches G13JHCF	Glass Filled Nylon Polyamide (PA)	Green/Red LED	0.4 VA	Unthreaded	2 VDC 2.1 VDC	PC Pin	3.8 mm	Standard Round	28 V	Process Sealed	100000 Cycles	28 V	On-Off-On	-25 °C	85 °C	Illuminated	SPDT	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole, Right Angle
