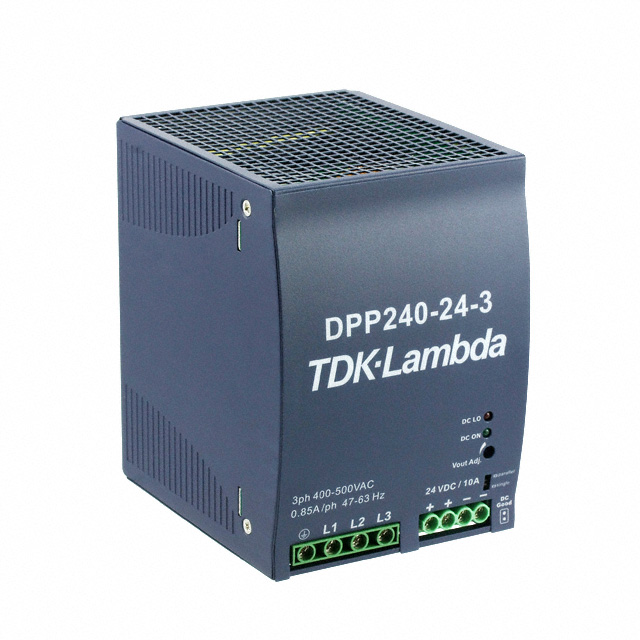

DPP240-24-3
TDK-LAMBDA
AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 240 W, 24 VDC, 10 A
Deep-Dive with AI
Search across all available documentation for this part.
DPP240-24-3
TDK-LAMBDA
AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 240 W, 24 VDC, 10 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DPP240-24-3 |
|---|---|
| AC Voltage - Input [Max] | 575 VAC |
| AC Voltage - Input [Min] | 340 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 90 % |
| Features | Adjustable Output, Load Sharing |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 4.68 in |
| Size / Dimension [x] | 118.9 mm |
| Size / Dimension [y] | 3.5 in |
| Size / Dimension [y] | 88.9 mm |
| Size / Dimension [z] | 4.88 " |
| Size / Dimension [z] | 124 mm |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DPP240 Series
The DPP240-24-3 is a 24V/240W 1-output DIN-rail mount Power Supply with wide range input, parallel function switch, current share, convection cooled and 120 to 140% over-current protection. This power supply output is fixed and can be adjustable.
