CTD433-50AC

Active

Allegro MicroSystems

EVAL BOARD FOR CT433

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet XtremeSense™ TMR technology

CTD433-50AC

Active

Allegro MicroSystems

EVAL BOARD FOR CT433

Deep-Dive with AI

DocumentsDatasheet XtremeSense™ TMR technology

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CTD433-50AC

Embedded	False
Interface	Analog
Sensing Range [Max]	50 A
Sensing Range [Min]	-50 A
Sensitivity	20 mV/mT
Sensor Type	Current Sensor
Supplied Contents	Board(s)
Utilized IC / Part	CT433
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

CT433 Series

Part	Sensitivity	Accuracy	Mounting Type	Supplier Device Package	Number of Channels	Current - Supply (Max) [Max]	Package / Case [x]	Package / Case	Package / Case [y]	Current - Sensing	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Linearity	For Measuring	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Output	Polarization	Supplied Contents	Interface	Sensing Range [Min]	Sensing Range [Max]	Utilized IC / Part
Allegro MicroSystems CT433-HSWF50DR	40 mV/mT	1 %	Surface Mount	16-SOIC	1	9 mA	0.295 in	16-SOIC	7.5 mm	50 A	300 ns	125 °C	-40 °C	Magnetoresistive	0.2 %	AC/DC	3.6 V	3 V	DC ~ 1MHz	Ratiometric Voltage	Unidirectional
Allegro MicroSystems CT433-HSWF65DR	30.8 mV/A	1 %	Surface Mount	16-SOIC	1	9 mA	0.295 in	16-SOIC	7.5 mm	65 A	300 ns	125 °C	-40 °C	Magnetoresistive	0.2 %	AC/DC	3.6 V	3 V	DC ~ 1MHz	Ratiometric Voltage	Unidirectional
Allegro MicroSystems CT433-HSWF50MR	20 mV/mT	0.5 %	Surface Mount	16-SOIC	1	9 mA	0.295 in	16-SOIC	7.5 mm	50 A	300 ns	125 °C	-40 °C	Magnetoresistive	0.1 %	AC/DC	3.6 V	3 V	DC ~ 1MHz	Ratiometric Voltage	Bidirectional
Allegro MicroSystems CT433-HSWF65MR	15.4 LSB/mT	0.5 %	Surface Mount	16-SOIC	1	9 mA	0.295 in	16-SOIC	7.5 mm	65 A	300 ns	125 °C	-40 °C	Magnetoresistive	0.2 %	AC/DC	3.6 V	3 V	DC ~ 1MHz	Ratiometric Voltage	Bidirectional
Allegro MicroSystems CT433-HSWF20MR	50 mV/A	0.5 %	Surface Mount	16-SOIC	1	9 mA	0.295 in	16-SOIC	7.5 mm	20 A	300 ns	125 °C	-40 °C	Magnetoresistive	0.1 %	AC/DC	3.6 V	3 V	DC ~ 1MHz	Ratiometric Voltage	Bidirectional
Allegro MicroSystems CTD433-50AC	20 mV/mT													Current Sensor			3.6 V	3 V				Board(s)	Analog	-50 A	50 A	CT433
Allegro MicroSystems CT433-HSWF20DR	100 mV/g	0.7 %	Surface Mount	16-SOIC	1	9 mA	0.295 in	16-SOIC	7.5 mm	20 A	300 ns	125 °C	-40 °C	Magnetoresistive	0.1 %	AC/DC	3.6 V	3 V	DC ~ 1MHz	Ratiometric Voltage	Unidirectional
Allegro MicroSystems CT433-HSWF30DR	66.7 mV/A	0.7 %	Surface Mount	16-SOIC	1	9 mA	0.295 in	16-SOIC	7.5 mm	30 A	300 ns	125 °C	-40 °C	Magnetoresistive	0.1 %	AC/DC	3.6 V	3 V	DC ~ 1MHz	Ratiometric Voltage	Unidirectional
Allegro MicroSystems CT433-HSWF70MR	14.3 mV/A	0.5 %	Surface Mount	16-SOIC	1	9 mA	0.295 in	16-SOIC	7.5 mm	70 A	300 ns	125 °C	-40 °C	Magnetoresistive	0.2 %	AC/DC	3.6 V	3 V	DC ~ 1MHz	Analog Voltage	Unidirectional

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 125.99

Description

General part information

CT433 Series

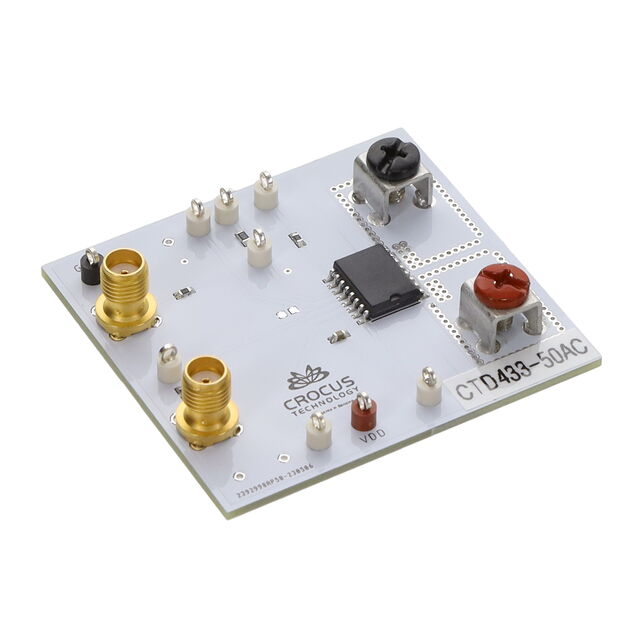

CT433 XtremeSense™ Crocus Technology Current Sensor Sensor Evaluation Board

Documents

Technical documentation and resources

Datasheet

XtremeSense™ TMR technology

Datasheet
