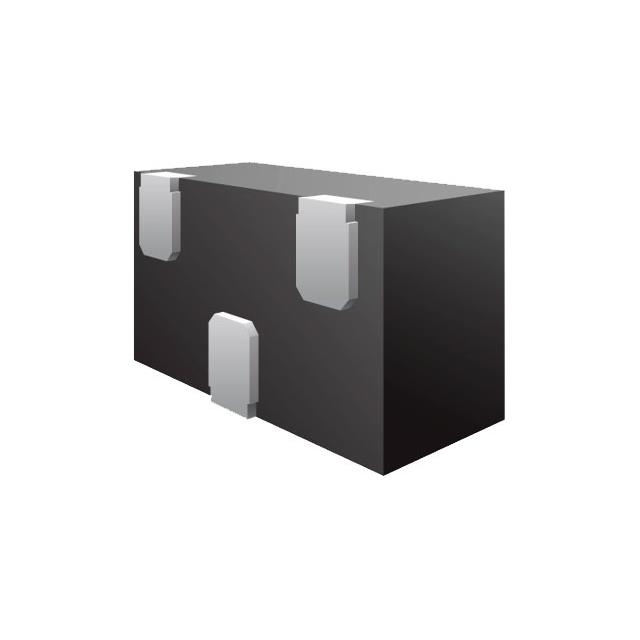

RCLAMP3552TQTNT

Active

Semtech Corporation

2-LINE, 3.5V, 0.4PF, ESD, SLP1006N3T

Search across all available documentation for this part.

Active

Semtech Corporation

2-LINE, 3.5V, 0.4PF, ESD, SLP1006N3T

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP3552TQTNT

Applications	USB
Bidirectional Channels	2
Capacitance @ Frequency	0.4 pF
Current - Peak Pulse (10/1000µs)	4 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	0402 (1006 Metric)
Power Line Protection	False
Qualification	AEC-Q100
Supplier Device Package	SLP1006N3T
Type	Zener
Voltage - Breakdown (Min) [Min]	7.5 V
Voltage - Clamping (Max) @ Ipp [Max]	6.5 V
Voltage - Reverse Standoff (Typ) [Max]	3.5 V

Part	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Type	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Bidirectional Channels	Voltage - Reverse Standoff (Typ) [Max]	Mounting Type	Voltage - Breakdown (Min) [Min]	Power Line Protection	Applications	Capacitance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Qualification
Semtech Corporation RCLAMP3552T.TNT	6.5 V	0402 (1006 Metric)	Zener	4 A	SLP1006N3T	2	3.5 V	Surface Mount	7.5 V		General Purpose	0.3 pF	-40 °C	125 ¯C
Semtech Corporation RCLAMP3552TQTNT	6.5 V	0402 (1006 Metric)	Zener	4 A	SLP1006N3T	2	3.5 V	Surface Mount	7.5 V		USB	0.4 pF	-40 °C	125 ¯C	Automotive	AEC-Q100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.5V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount SLP1006N3T
