SA56-11SURKWA

Active

Kingbright

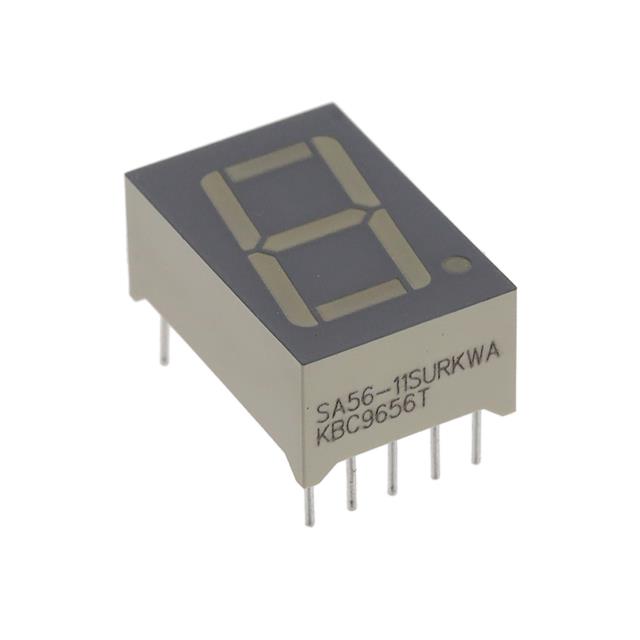

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, RED, 20 MA, 1.95 V, 97 MCD, 1, 14.2 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

SA56-11SURKWA

Active

Kingbright

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, RED, 20 MA, 1.95 V, 97 MCD, 1, 14.2 MM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA56-11SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	97 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.75 in
Size / Dimension [x]	19.05 mm
Size / Dimension [y]	12.7 mm
Size / Dimension [y]	0.5 in
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.315 "
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	645 nm

SA56-11 Series

Part	Common Pin	Package / Case	Package / Case	Package / Case	Wavelength - Peak	Display Type	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Millicandela Rating	Current - Test	Number of Characters [custom]	Digit/Alpha Size	Digit/Alpha Size
Kingbright SA56-11YWA	Common Anode	0.6 in	15.24 mm	10-DIP	590 nm	7-Segment	75 mw	2.1 V	Yellow	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	6.5 mcd	20 mA	1	0.56 in	14.22 mm
Kingbright SA56-11CGKWA	Common Anode	0.6 in	15.24 mm	10-DIP		7-Segment	75 mw	2.1 V	Green	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	35 mcd	20 mA	1	0.56 in	14.22 mm
Kingbright SA56-11SRWA	Common Anode	0.6 in	15.24 mm	10-DIP	660 nm	7-Segment	75 mw	1.85 V	Red	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	34 mcd	20 mA	1	0.56 in	14.22 mm
Kingbright SA56-11EWA	Common Anode	0.6 in	15.24 mm	10-DIP	627 nm	7-Segment	75 mw	2 V	Red	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in		20 mA	1	0.56 in	14.22 mm
Kingbright SA56-11SURKWA	Common Anode	0.6 in	15.24 mm	10-DIP	645 nm	7-Segment	75 mw	1.95 V	Red	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	97 mcd	20 mA	1	0.56 in	14.22 mm
Kingbright SA56-11GWA	Common Anode	0.6 in	15.24 mm	10-DIP	565 nm	7-Segment	62.5 mW	2.2 V	Green	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	11 mcd	20 mA	1	0.56 in	14.22 mm
Kingbright SA56-11SYKWA	Common Anode	0.6 in	15.24 mm	10-DIP	590 nm	7-Segment	75 mw	2 V	Yellow	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	160 mcd	20 mA	1	0.56 in	14.22 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.48
		40	$ 1.32
		120	$ 1.16
		520	$ 1.00
		1000	$ 0.95
		2000	$ 0.91
		5000	$ 0.86
		10000	$ 0.84
Newark	Each	1	$ 2.84
		10	$ 2.23
		120	$ 1.64
		520	$ 1.46
		1000	$ 1.26
		2520	$ 1.21
		5000	$ 1.17

Description

General part information

SA56-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
