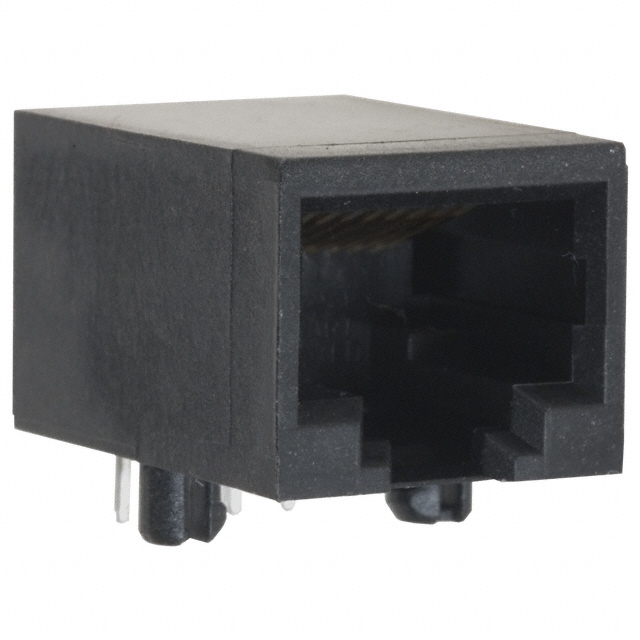

SS-6488-NF - SS-6488-NF

SS-6488-NF

Active
BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice ENTechnical Data Sheet EN+1
SS-6488-NF - SS-6488-NF

SS-6488-NF

Active
BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsProduct Change Notice ENTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSS-6488-NF
Connector TypeJack
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact MaterialCopper Alloy
Housing MaterialThermoplastic
LED ColorDoes Not Contain LED
Mounting TypeThrough Hole
Number of Ports1
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Number of Rows1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Orientation90 °
ShieldingUnshielded
Tab DirectionDown
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 1.16
10$ 0.98
35$ 0.94
70$ 0.92
105$ 0.88
280$ 0.80
525$ 0.72
1015$ 0.64
2520$ 0.58
NewarkEach 1$ 1.15
10$ 1.02
25$ 0.95
50$ 0.91
100$ 0.87
250$ 0.79
500$ 0.71
1000$ 0.64

Description

General part information

SS-6488 Series

The SS-6488-NF is a 8P8C/RJ45 Modular Jack with 30μinch gold-plated copper alloy contacts and UL94V-0 flame-rated thermoplastic housing.
