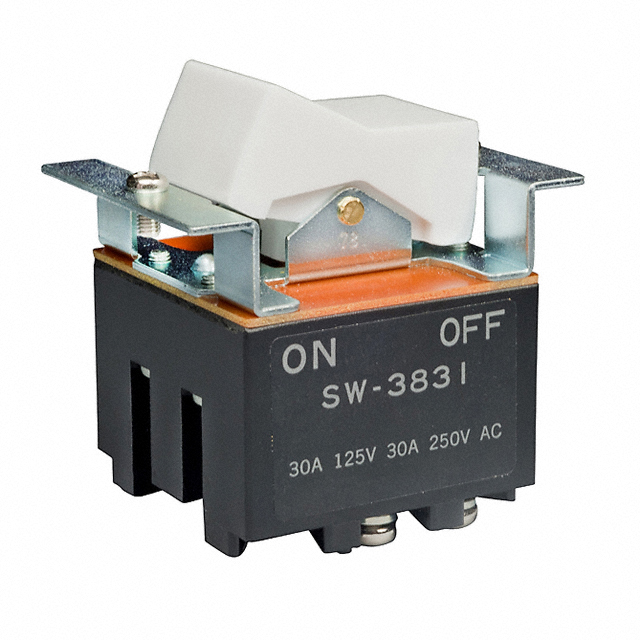

SW3831/U

Active

NKK Switches

SWITCH ROCKER ON NONE OFF 3PST SCREW LUG ROCKER 30A 250VAC 125VDC 50000CYCLES

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER ON NONE OFF 3PST SCREW LUG ROCKER 30A 250VAC 125VDC 50000CYCLES

Technical Specifications

Parameters and characteristics for this part

Specification	SW3831/U

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	3PST
Color - Actuator/Cap	White
Current Rating (Amps)	30 A
Electrical Life	25000 Steps
Mounting Type	Panel Mount, Flange
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Type	Mounting Type	Approval Agency	Voltage Rating - DC	Electrical Life	Actuator Marking	Color - Actuator/Cap	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Switch Function	Circuit	Termination Style	Voltage Rating - AC	Current Rating (Amps)
NKK Switches SW3831D	Concave (Standard V)	Flange Panel Mount	CSA UL	30 V	25000 Steps	No Marking	White	-10 °C	158 °F	On-Off	3PST	Screw Terminal
NKK Switches SW3831/U	Concave (Standard V)	Flange Panel Mount	CSA UL	30 V	25000 Steps	No Marking	White	-10 °C	158 °F	On-Off	3PST	Screw Terminal	125 V	30 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch 3PST 30A (AC/DC) 125 V Panel Mount, Flange
