AB-FO02401-02012-9A1
ActiveAmerican Bright Optoelectronics Corporation

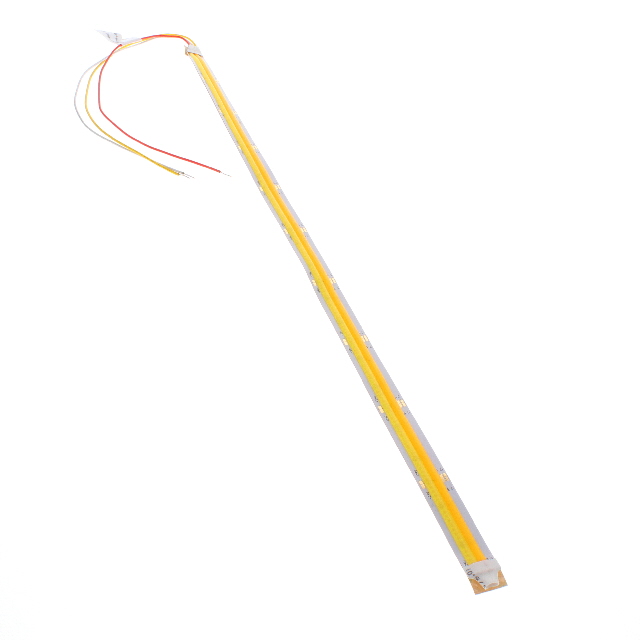

LED COB AB-FO WH LNR STRP 6500K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB-FO02401-02012-9A1
ActiveAmerican Bright Optoelectronics Corporation
LED COB AB-FO WH LNR STRP 6500K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB-FO02401-02012-9A1 |
|---|---|
| CCT (K) [Max] | 6500 K |
| CCT (K) [Min] | 3000 K |
| Color | White, Cool, White, Warm |
| Configuration | Linear Light Strip, Flexible |
| CRI (Color Rendering Index) | 90 |
| Current - Test | 250 mA |
| Features | IP65 |
| Height [z] | 2.2 mm |
| Lens Type | Flat |
| Lumens/Watt @ Current - Test | 80 lm/W, 70 lm/W |
| Luminous Flux @ Current/Temperature | 960 lm, 840 lm |
| Size / Dimension [x] | 20 " |
| Size / Dimension [y] | 14 mm |
| Type | Chip On Board (COB) |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 22.55 | |
| 10 | $ 17.66 | |||
| 100 | $ 15.42 | |||
| 500 | $ 14.14 | |||
Description
General part information
AB-FO02401 Series
LED Lighting COBs Engines Modules Chip On Board (COB) AB-FO White, Warm / White, Cool Linear Light Strip, Flexible
