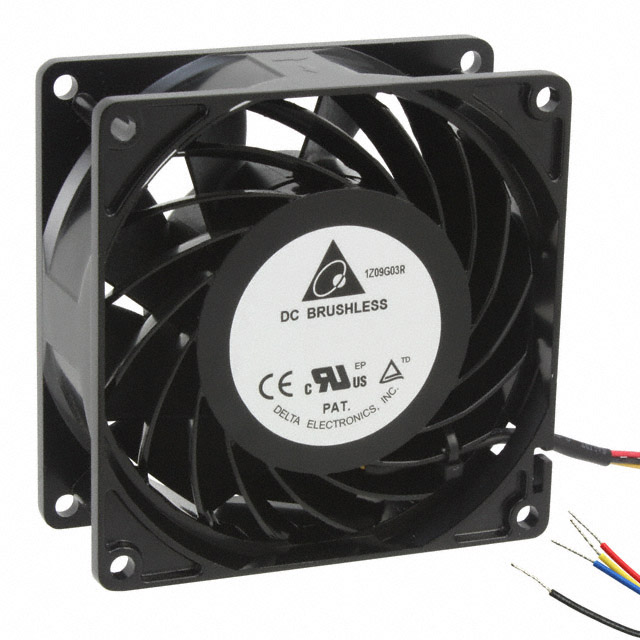

THA0948BE

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THA0948BE

Air Flow	5.31 m³/min
Air Flow	189.7 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	1.4 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	71 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	67.2 W
RPM	9500 RPM
Static Pressure	3.02 in H2O
Static Pressure	752.3 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	56 VDC
Voltage Range [Min]	30 VDC
Weight	500 g
Weight	1.1 lbs
Width [y]	38 mm

Part	Lifetime @ Temp.	Width [y]	Material - Blade	Weight	Weight	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated [custom]	Fan Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Frame	Termination	Air Flow	Air Flow	Approval Agency	Features	Noise	Current Rating (Amps)	RPM	Static Pressure	Static Pressure	Bearing Type
Delta Electronics THA0948BE	70000 Hrs	38 mm	Plastic	500 g	1.1 lbs	67.2 W	30 VDC	56 VDC	48 VDC	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Aluminum	4 Wire Leads	5.31 m³/min	189.7 CFM	CE cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)	71 dB(A)	1.4 A	9500 RPM	3.02 in H2O	752.3 Pa	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 189.7 CFM (5.31m³/min) 4 Wire Leads
