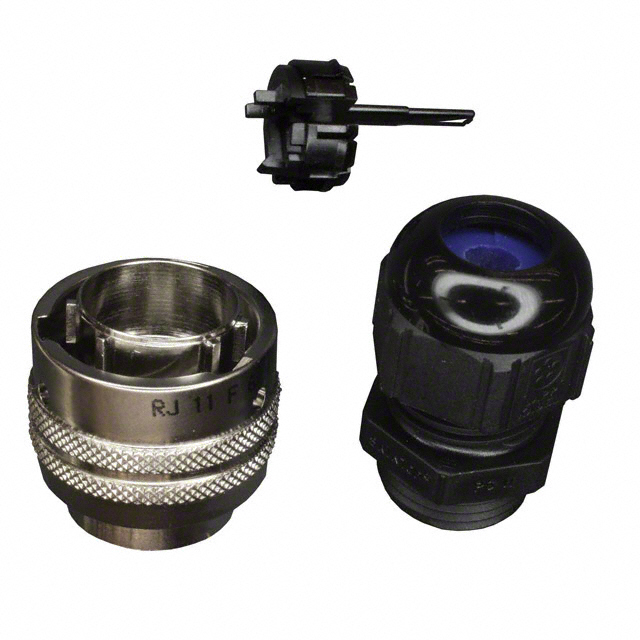

RJ11F6N

Active

Amphenol Socapex

CONN MOD PLUG HSG RJ11 SILVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJ11F6N

Active

Amphenol Socapex

CONN MOD PLUG HSG RJ11 SILVER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJ11F6N

Color	Silver
Connector Type	Housing for Prewired RJ11 Cordset
Fastening Type	Bayonet Lock
Features	Toolless, Shock Resistant, Vibration Resistant
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Note	Plug Not Provided
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded

RJ11F Series

Part	Features	Accessory Type	For Use With/Related Products	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	LED Color	Ratings	Connector Type	Tab Direction	Number of Ports	Termination	Number of Rows	Ingress Protection	Shielding	Orientation	Number of Positions/Contacts	Convert To (Adapter End)	Mounting Feature	Shell Material, Finish	Type	Convert From (Adapter End)	Color	Fastening Type	Note	Mating Cycles
Amphenol Socapex RJ11FC2N	Lanyard	Cap (Cover)	RJ11F Series Receptacle
Amphenol Socapex RJ11FC6N	Lanyard	Cap (Cover)	RJ11F Series Plug
Amphenol Socapex RJ11F72G	Circular Bayonet Coupling			85 °C	-40 °C	Bulkhead Panel Mount	Does Not Contain LED	Cat5e	Jack	User Selectable	1	Solder	1	IP67 - Dust Tight Waterproof	Unshielded	Straight	6p6c (RJ11 RJ12 RJ14 RJ25)
Amphenol Socapex RJ11F71B	Circular Bayonet Coupling			85 °C	-40 °C	Bulkhead Panel Mount								IP67 - Dust Tight Waterproof	Unshielded			6p6c (RJ11) Jack	Front Side Nut	Metal	Coupler	Jack 6p6c (RJ11)
Amphenol Socapex RJ11F22B	Circular Bayonet Coupling			85 °C	-40 °C	Panel Mount Square Flange	Does Not Contain LED	Cat5e	Jack	User Selectable	1	Solder	1	IP67 - Dust Tight Waterproof	Unshielded	Straight	6p6c (RJ11 RJ12 RJ14 RJ25)
Amphenol Socapex RJ11FC2G	Lanyard	Cap (Cover)	RJ11F Series Receptacle																				Olive
Amphenol Socapex RJ11F6B	Shock Resistant Toolless Vibration Resistant			85 °C	-40 °C	Free Hanging (In-Line)			Housing for Prewired RJ11 Cordset					IP67 - Dust Tight Waterproof	Unshielded								Black	Bayonet Lock	Plug Not Provided	500
Amphenol Socapex RJ11F72N	Circular Bayonet Coupling			85 °C	-40 °C	Bulkhead Panel Mount	Does Not Contain LED	Cat5e	Jack	User Selectable	1	Solder	1	IP67 - Dust Tight Waterproof	Unshielded	Straight	6p6c (RJ11 RJ12 RJ14 RJ25)
Amphenol Socapex RJ11F6N	Shock Resistant Toolless Vibration Resistant			85 °C	-40 °C	Free Hanging (In-Line)			Housing for Prewired RJ11 Cordset					IP67 - Dust Tight Waterproof	Unshielded								Silver	Bayonet Lock	Plug Not Provided	500
Amphenol Socapex RJ11F22G	Circular Bayonet Coupling			85 °C	-40 °C	Panel Mount Square Flange	Does Not Contain LED	Cat5e	Jack	User Selectable	1	Solder	1	IP67 - Dust Tight Waterproof	Unshielded	Straight	6p6c (RJ11 RJ12 RJ14 RJ25)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 82.85

Description

General part information

RJ11F Series

Plug Housing Housing for Prewired RJ11 Cordset Modular Connector Bayonet Lock Silver

Documents

Technical documentation and resources
