6282-3SG-519

Active

Conxall/Switchcraft

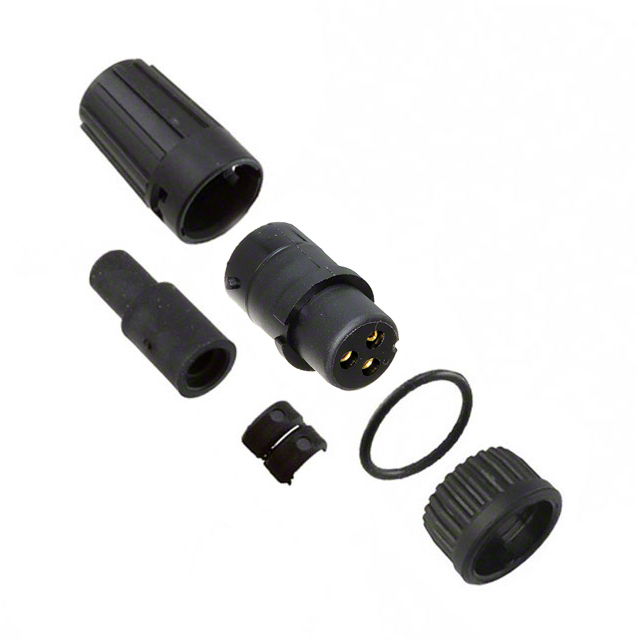

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6282-3SG-519

Active

Conxall/Switchcraft

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6282-3SG-519

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.21 in
Cable Opening [Max] [diameter]	5.33 mm
Cable Opening [Min] [diameter]	0.19 in
Cable Opening [Min] [diameter]	4.83 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

6282-3SG Series

Part	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Color	Connector Type	Contact Finish - Mating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shielding	Voltage Rating	Applications	Primary Material	Orientation	Backshell Material, Plating	Contact Material	Fastening Type	Mounting Type	Features	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 6282-3SG-321	5.33 mm	5.84 mm	0.21 in	0.23 in	Black	Female Sockets Plug	Gold	Weathertight	-40 °C	115 °C	Varies by Wire Gauge	Unshielded	600 V	Automotive Communication Systems Instrumentation	Plastic	Keyed	Nylon Polyamide (PA)	Brass	Bayonet Lock	Free Hanging (In-Line)	Backshell
Conxall/Switchcraft 6282-3SG-513					Black	Female Sockets Plug	Gold	Weathertight	-40 °C	115 °C	Varies by Wire Gauge	Unshielded	600 V	Automotive Communication Systems Instrumentation	Plastic	Keyed	Nylon Polyamide (PA)	Brass	Bayonet Lock	Free Hanging (In-Line)	Backshell	0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 6282-3SG-522	5.59 mm		0.22 in	0.25 in	Black	Female Sockets Plug	Gold	Weathertight	-40 °C	115 °C	Varies by Wire Gauge	Unshielded	600 V	Automotive Communication Systems Instrumentation	Plastic	Keyed	Nylon Polyamide (PA)	Brass	Bayonet Lock	Free Hanging (In-Line)	Backshell			6.35 mm
Conxall/Switchcraft 6282-3SG-519	4.83 mm		0.19 in	0.21 in	Black	Female Sockets Plug	Gold	Weathertight	-40 °C	115 °C	Varies by Wire Gauge	Unshielded	600 V	Automotive Communication Systems Instrumentation	Plastic	Keyed	Nylon Polyamide (PA)	Brass	Bayonet Lock	Free Hanging (In-Line)	Backshell			5.33 mm
Conxall/Switchcraft 6282-3SG-516					Black	Female Sockets Plug	Gold	Weathertight	-40 °C	115 °C	Varies by Wire Gauge	Unshielded	600 V	Automotive Communication Systems Instrumentation	Plastic	Keyed	Nylon Polyamide (PA)	Brass	Bayonet Lock	Free Hanging (In-Line)	Backshell				0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 6282-3SG-311					Black	Female Sockets Plug	Gold	Weathertight	-40 °C	115 °C	Varies by Wire Gauge	Unshielded	600 V	Automotive Communication Systems Instrumentation	Plastic	Keyed	Nylon Polyamide (PA)	Brass	Bayonet Lock	Free Hanging (In-Line)	Backshell								2.29 mm	0.09 in 0.14 in	3.56 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.49
		10	$ 10.18
		25	$ 9.79
		50	$ 9.40
		100	$ 8.88
		300	$ 8.09
		500	$ 7.57
		1000	$ 6.94

Description

General part information

6282-3SG Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
