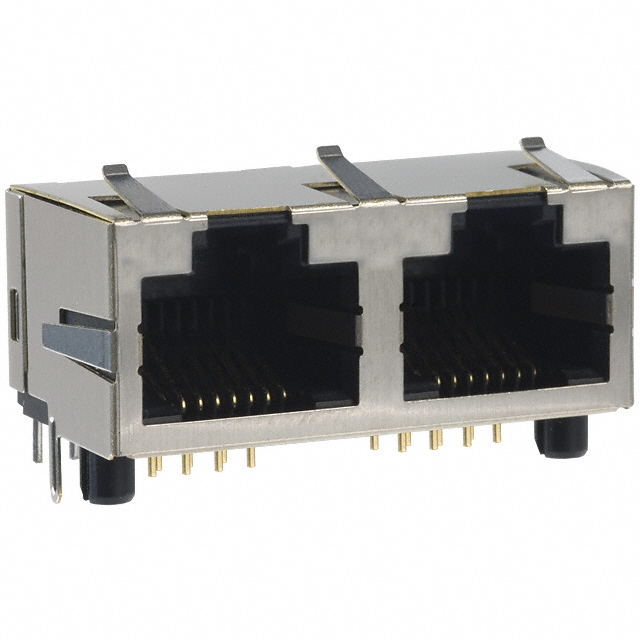

A20-216-660-010

Active

EDAC Inc.

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

EDAC Inc.

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	A20-216-660-010

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	2
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	90 °
Ratings	Cat5
Shielding	Shielded
Tab Direction	Up
Termination	Solder

Part	Orientation	Number of Rows	Number of Ports	Number of Positions/Contacts	Connector Type	LED Color	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Shielding	Ratings	Contact Finish	Mounting Type	Tab Direction	Termination	Housing Material
EDAC Inc. A20-216-663-310	90 °	1	2	8p8c (RJ45 Ethernet)	Jack	Green - Green	Phosphor Bronze	0.76 Ám	30 Áin	Shielded	Cat5	Gold	Through Hole	Up	Solder	Polybutylene Terephthalate (PBT)
EDAC Inc. A20-216-660-010	90 °	1	2	8p8c (RJ45 Ethernet)	Jack	Does Not Contain LED	Phosphor Bronze	0.76 Ám	30 Áin	Shielded	Cat5	Gold	Through Hole	Up	Solder	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.82

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5
