A29000-165

Active

Omnetics

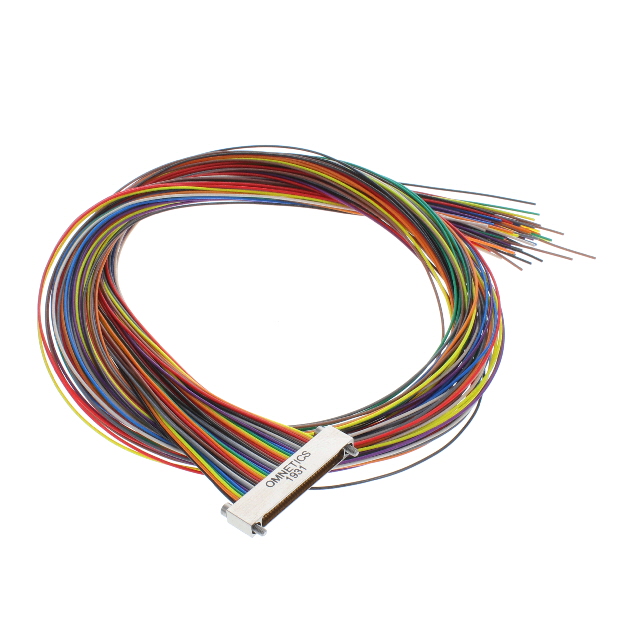

CABLE ASSY D-NANO-D 65P 457.2MM

Search across all available documentation for this part.

Active

Omnetics

CABLE ASSY D-NANO-D 65P 457.2MM

Technical Specifications

Parameters and characteristics for this part

Part	Type	Number of Positions	Shielding	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length [x]	Length [x]	2nd Connector	1st Connector	Color
Omnetics A29000-131	D-Type Nano-D	31	Unshielded	50 µin	1.27 µm	Gold	457.2 mm	1.5 ft	Individual Wire Leads	Female Sockets Receptacle	Individual Multiple
Omnetics A29000-021	D-Type Nano-D	21	Unshielded	50 µin	1.27 µm	Gold	457.2 mm	1.5 ft	Individual Wire Leads	Female Sockets Receptacle	Individual Multiple
Omnetics A29000-037	D-Type Nano-D	37	Unshielded	50 µin	1.27 µm	Gold	457.2 mm	1.5 ft	Individual Wire Leads	Female Sockets Receptacle	Individual Multiple
Omnetics A29000-137	D-Type Nano-D	37	Unshielded	50 µin	1.27 µm	Gold	457.2 mm	1.5 ft	Individual Wire Leads	Female Sockets Receptacle	Individual Multiple
Omnetics A29000-151	D-Type Nano-D	51	Unshielded	50 µin	1.27 µm	Gold	457.2 mm	1.5 ft	Individual Wire Leads	Female Sockets Receptacle	Individual Multiple
Omnetics A29000-085	D-Type Nano-D	85	Unshielded	50 µin	1.27 µm	Gold	457.2 mm	1.5 ft	Individual Wire Leads	Female Sockets Receptacle	Individual Multiple
Omnetics A29000-165	D-Type Nano-D	65	Unshielded	50 µin	1.27 µm	Gold	457.2 mm	1.5 ft	Individual Wire Leads	Female Sockets Receptacle	Individual Multiple
Omnetics A29000-031	D-Type Nano-D	31	Unshielded	50 µin	1.27 µm	Gold	457.2 mm	1.5 ft	Individual Wire Leads	Female Sockets Receptacle	Individual Multiple
Omnetics A29000-185	D-Type Nano-D	85	Unshielded	50 µin	1.27 µm	Gold	457.2 mm	1.5 ft	Individual Wire Leads	Female Sockets Receptacle	Individual Multiple

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly D-Type, Nano-D Multiple, Individual 1.50' (457.20mm) Receptacle, Female Sockets to Individual Wire Leads Unshielded
