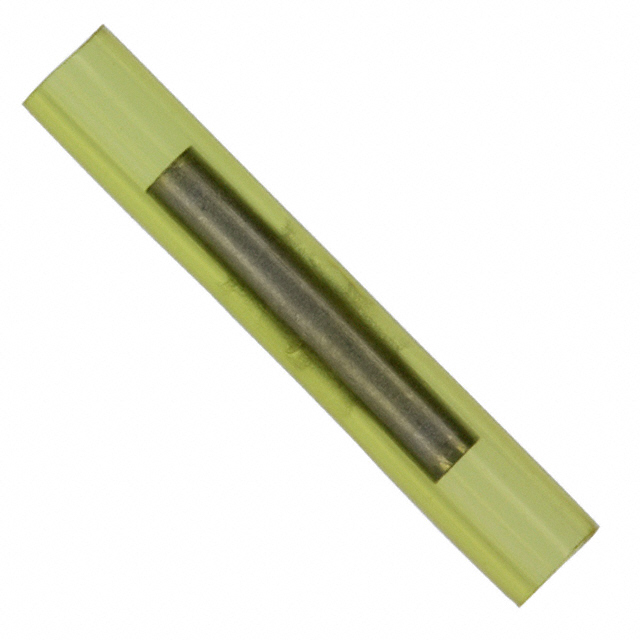

BSN22-C
ObsoletePanduit Corp
CONN SPLICE 22-26 AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

BSN22-C
ObsoletePanduit Corp
CONN SPLICE 22-26 AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BSN22-C |
|---|---|
| Color | Yellow |
| Insulation | Fully Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Butt Splice, Inline, Individual Openings |
| Termination | Crimp |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.13 | |
| 10 | $ 1.05 | |||
| 25 | $ 1.03 | |||
| 50 | $ 1.00 | |||
| 100 | $ 0.98 | |||
Description
General part information
BSN22 Series
Terminal Butt Splice, Inline, Individual Openings Connector Crimp 22-26 AWG Yellow
