21458-24-2-0500-0402-1-TS

Obsolete

CnC Tech, LLC

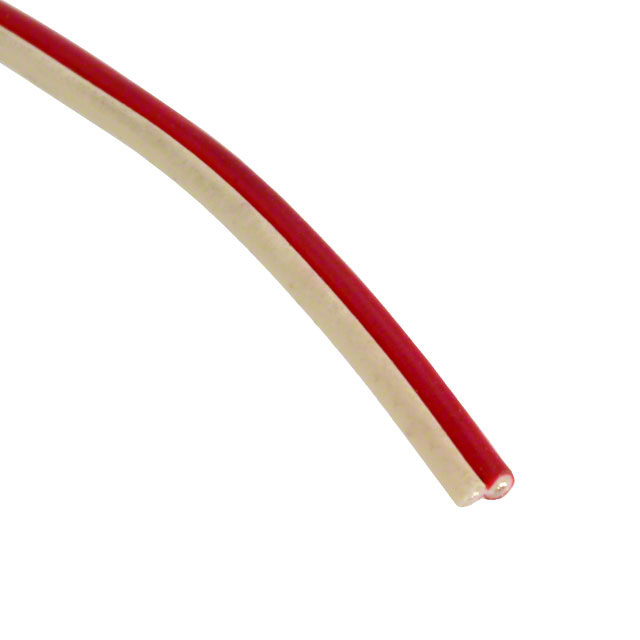

CABLE 2COND 24AWG RED/WH 25'

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CABLE 2COND 24AWG RED/WH 25'

Technical Specifications

Parameters and characteristics for this part

Specification	21458-24-2-0500-0402-1-TS

Cable Type	Multi-Conductor
Conductor Material	Copper, Tinned
Conductor Strand [custom]	11 Strands
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	11
Conductor Strand [diameter]	0.0063 in
Jacket (Insulation) Diameter [diameter]	2.72 mm, 2.89 mm
Jacket (Insulation) Diameter [diameter]	0.107 ", 0.114 in
Jacket (Insulation) Material	Polyphenylene Ether (PPE)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	White, Red
Length [x]	500 ', 100 ft, 25 ft
Length [x]	152.4 m, 30.5 m, 7.62 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 21458
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Strand [custom]	Conductor Strand [diameter]	Number of Conductors	Length	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket (Insulation) Material	Voltage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Cable Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]
CnC Tech, LLC 21458-24-2-0500-0104-1-TS	11	0.0063 in	2	15.24 m	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	80 C	-10 °C	0.015 in	0.381 mm	24 AWG	Polyphenylene Ether (PPE)	300 V	Black Red	0.114 in	2.89 mm	UL Style 21458	Multi-Conductor	Copper Tinned
CnC Tech, LLC 21458-24-2-0500-0402-1-TS	11	0.0063 in	2		25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	80 C	-10 °C	0.015 in	0.381 mm	24 AWG	Polyphenylene Ether (PPE)	300 V	Red White	0.107 " 0.114 in	2.72 mm 2.89 mm	UL Style 21458	Multi-Conductor	Copper Tinned	11 Strands	34 AWG
CnC Tech, LLC 21458-24-2-0500-0102-1-TS	11	0.0063 in	2	15.24 m	50 ft 100 ft 500 '	30.5 m 152.4 m	80 C	-10 °C	0.015 in	0.381 mm	24 AWG	Polyphenylene Ether (PPE)	300 V	Black White	0.114 in	2.89 mm	UL Style 21458	Multi-Conductor	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Red, White 24 AWG 25.00' (7.62m)
