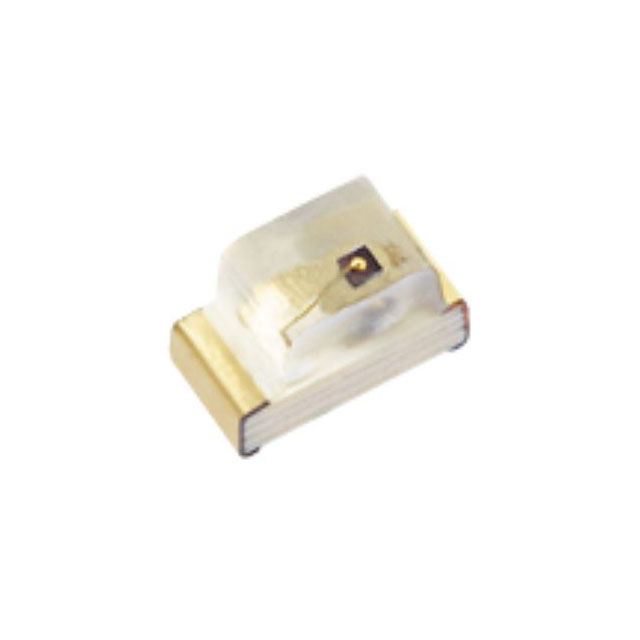

AP1608P1C-P22

Active

Kingbright

SENSOR PHOTO 940NM TOP VIEW 0603

Search across all available documentation for this part.

Active

Kingbright

SENSOR PHOTO 940NM TOP VIEW 0603

Technical Specifications

Parameters and characteristics for this part

Specification	AP1608P1C-P22

Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	0603 (1608 Metric)
Power - Max [Max]	100 mW
Viewing Angle	150 °
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Mounting Type	Type	Orientation	Viewing Angle	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Wavelength	Package / Case	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If [Min]	Power - Max [Max]	Current - Dark (Id) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]
Kingbright AP1608SF4C	Surface Mount	Infrared (IR)	Top View	120 °	85 °C	-40 °C	1.3 V	880 nm	0603 (1608 Metric)	50 mA	0.8 mW/sr
Kingbright AP1608P1C-P22	Surface Mount		Top View	150 °	85 °C	-40 °C		940 nm	0603 (1608 Metric)			100 mW	100 nA	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 940nm Top View 0603 (1608 Metric)
