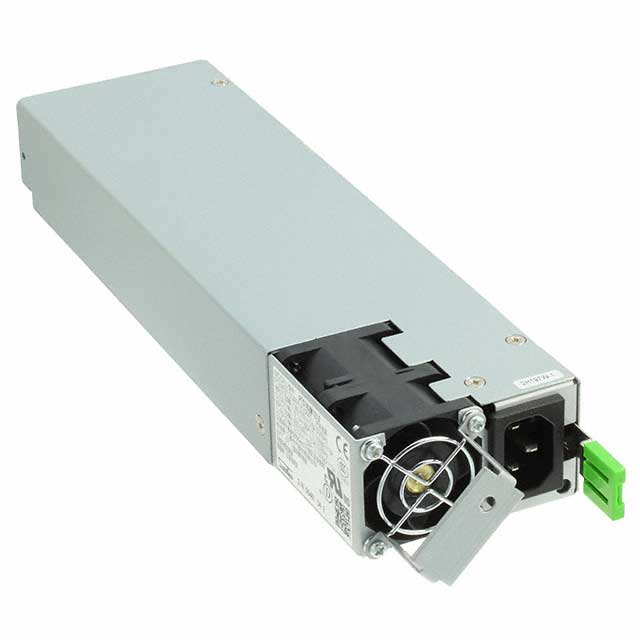

PTS162M1212

Obsolete

Sanken Electric USA Inc.

AC/DC CONVERTER 12V 1600W

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

AC/DC CONVERTER 12V 1600W

Technical Specifications

Parameters and characteristics for this part

Specification	PTS162M1212

Applications	ITE (Commercial)
Current - Output 1	132 A
Efficiency	94 %
Features	Load Sharing, Hot Swappable, Universal Input, Standby Output, PFC, I²C Interface, 80 Plus® Platinum
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	0 °C
Power (Watts)	1600 W
Size / Dimension [x]	265 mm
Size / Dimension [x]	10.43 in
Size / Dimension [y]	2.89 in
Size / Dimension [y]	73.5 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Applications	Voltage - Output 1	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Type	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Current - Output 1	Efficiency
Sanken Electric USA Inc. PTS162M1212	ITE (Commercial)	12 V	Rack Mount	0 °C	55 °C	1600 W	Front End	90 VAC	264 VAC	1	80 Plus® Platinum Hot Swappable I²C Interface Load Sharing PFC Standby Output Universal Input	2.89 in	265 mm	1.57 "	40 mm	73.5 mm	10.43 in	3000 V	132 A	94 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 526.08

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
