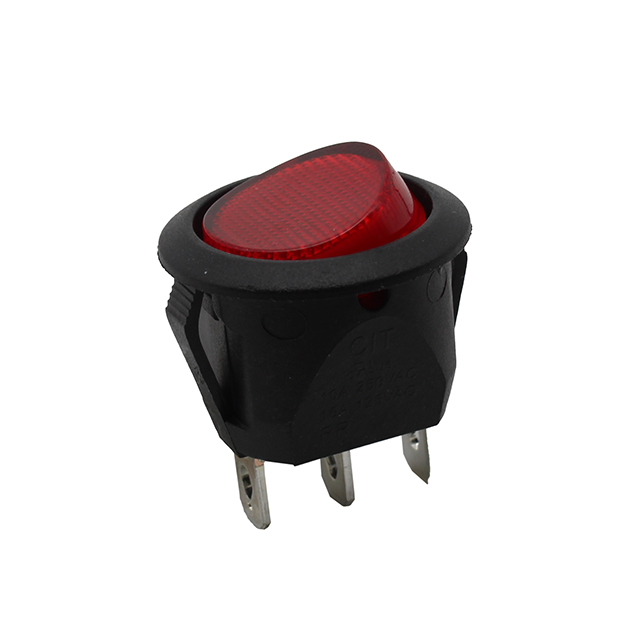

RR31123TACN20

Active

CIT Relay and Switch

SWITCH ROCKER SPST 15A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH ROCKER SPST 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RR31123TACN20

Actuator Marking	No Marking
Actuator Type	Round - Illuminated
Circuit	SPST
Color - Actuator/Cap	Red
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Illumination Type, Color	Neon, Clear
Illumination Voltage (Nominal)	250 VAC
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-Off
Termination Style	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in
Voltage Rating - AC	125 V

Part	Circuit	Electrical Life	Termination Style	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - AC	Actuator Type	Color - Actuator/Cap	Illumination Type, Color	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Illumination Voltage (Nominal)
CIT Relay and Switch RR31123TACN20	SPST	10000 Cycles	Quick Connect Solder	0.187 in 4.7 mm	20.2 mm	On-Off	125 V	Round - Illuminated	Red	Clear Neon	15 A	Panel Mount Snap-In	-20 C	70 °C	No Marking	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 15A (AC) 125 V Panel Mount, Snap-In
