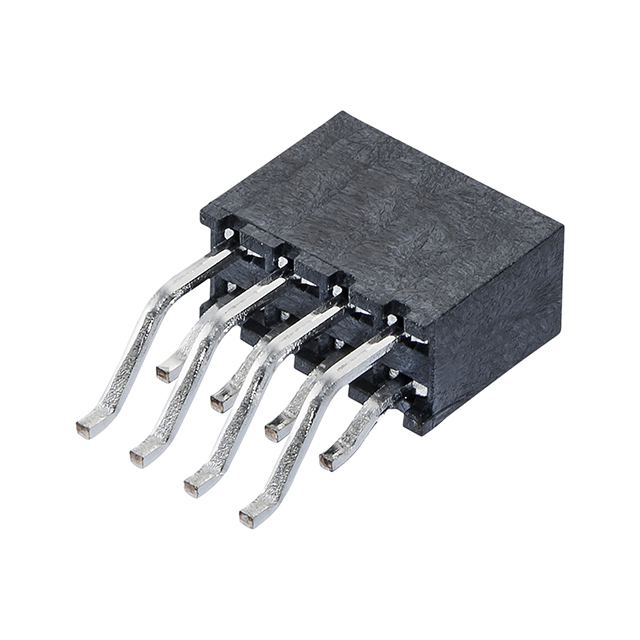

M22-6550442R

Active

Harwin Inc.

CONN, R/A RCPT, 8POS, 2ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M22 Series Spec Sheet +2

M22-6550442R

Active

Harwin Inc.

CONN, R/A RCPT, 8POS, 2ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M22 Series Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-6550442R

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.59 µin
Contact Finish Thickness - Mating	0.015 µm
Contact Finish Thickness - Post	2.03 µm
Contact Finish Thickness - Post	80 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

M22-655 Series

Part	Contact Finish - Post	Number of Rows	Contact Type	Current Rating (Amps)	Fastening Type	Insulation Color	Number of Positions Loaded	Termination	Applications	Number of Positions	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Shape	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Mating	Number of Positions
Harwin Inc. M22-6550642R	Tin	2	Forked	2 A	Push-Pull	Black	All	Solder	General Purpose	12	UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	Receptacle	-40 °C	105 ░C	0.59 µin	0.015 µm	Phosphor Bronze	Square	Surface Mount Right Angle	2.03 µm	80 µin	0.157 in	4 mm	Gold
Harwin Inc. M22-6551042R	Tin	2	Forked	2 A	Push-Pull	Black	All	Solder	General Purpose	20	UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	Receptacle	-40 °C	105 ░C	0.59 µin	0.015 µm	Phosphor Bronze	Square	Surface Mount Right Angle	2.03 µm	80 µin	0.157 in	4 mm	Gold
Harwin Inc. M22-6550442R	Tin	2	Forked	2 A	Push-Pull	Black	All	Solder	General Purpose	8	UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	Receptacle	-40 °C	105 ░C	0.59 µin	0.015 µm	Phosphor Bronze	Square	Surface Mount Right Angle	2.03 µm	80 µin	0.157 in	4 mm	Gold
Harwin Inc. M22-6550842R	Tin	2	Forked	2 A	Push-Pull	Black	All	Solder	General Purpose		UL94 V-0	0.079 in	2 mm	0.079 in	2 mm	Receptacle	-40 °C	105 ░C	0.59 µin	0.015 µm	Phosphor Bronze	Square	Surface Mount Right Angle	2.03 µm	80 µin	0.157 in	4 mm	Gold	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.44
		10	$ 1.22
		100	$ 1.09
	Digi-Reel®	1	$ 1.44
		10	$ 1.22
		100	$ 1.09
	Tape & Reel (TR)	750	$ 0.61
Newark	Each (Supplied on Full Reel)	500	$ 0.95
		1000	$ 0.89
		2500	$ 0.83
		5000	$ 0.79
		10000	$ 0.74

Description

General part information

M22-655 Series

8 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

Datasheet

M22 Series Spec Sheet

Datasheet

M20-003

Drawing EN

Datasheet
