SNP24GHS0H4

Active

HELLERMANNTYTON

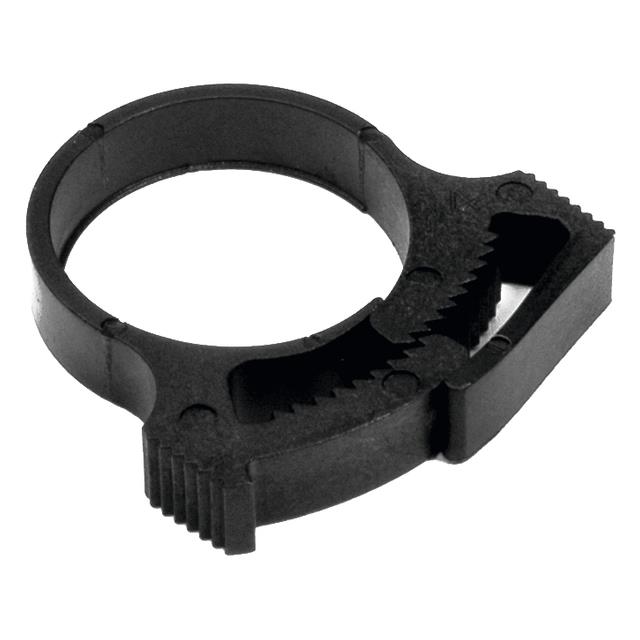

SNAPPER HOSE CLAMP, 1.0" 1.17" BUNDLE DIAMETER, PA66GF13, BLACK, 500/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SNAPPER HOSE CLAMP, 1.0" 1.17" BUNDLE DIAMETER, PA66GF13, BLACK, 500/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	SNP24GHS0H4

Color	Black
Features	Impact Resistant, Heat Stabilized
Length [Max]	39.07 mm
Length [Max] [x]	1.538 "
Length [Min]	24.71 mm
Length [Min] [x]	0.973 "
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	0.07 in
Material Thickness	1.78 mm
Opening Size [Max]	29.46 mm
Opening Size [Max]	1.16 in
Opening Size [Min]	25.58 mm
Opening Size [Min]	1.007 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	0.295 in
Width	7.49 mm

Part	Material Thickness	Material Thickness	Features	Type Attributes	Material	Type	Length [Max]	Length [Min] [x]	Length [Max] [x]	Length [Min]	Opening Size [Max]	Opening Size [Min]	Opening Size [Min]	Opening Size [Max]	Material Flammability Rating	Width	Width	Color
HELLERMANNTYTON SNP24GHS0H4	0.07 in	1.78 mm	Heat Stabilized Impact Resistant	Push-Fit	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose	39.07 mm	0.973 "	1.538 "	24.71 mm	29.46 mm	25.58 mm	1.007 in	1.16 in	UL94 HB	0.295 in	7.49 mm	Black
