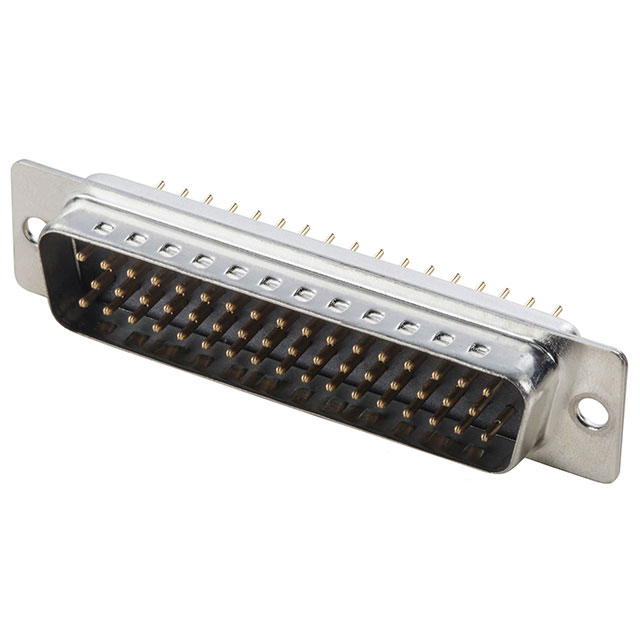

A-DS 50 PP/Z-BK

Active

Assmann WSW Components

CONN D-SUB PLUG 50POS VERT SLDR

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB PLUG 50POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	A-DS 50 PP/Z-BK

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	250 VAC

Part	Contact Type	Connector Type	Contact Finish	Number of Rows	Contact Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Shell Size, Connector Layout	Flange Feature	Features	Contact Finish Thickness	Voltage Rating	Connector Style	Termination	Color	Current Rating (Amps)	Material Flammability Rating	Mounting Type
Assmann WSW Components A-DS 50 PP/Z-BK	Signal	Male Pins Plug	Gold	3	Copper Alloy	50	105 ░C	-55 °C	Polybutylene Terephthalate (PBT) Glass Filled	5	Housing/Shell (Unthreaded)	Grounding Indents	Flash	250 VAC	D-Sub	Solder	Black	3 A	UL94 V-0	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position D-Sub Plug, Male Pins Connector
