EB2085-B-J33AFF

Active

NKK Switches

LIGHT TOUCH MINIATURE PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

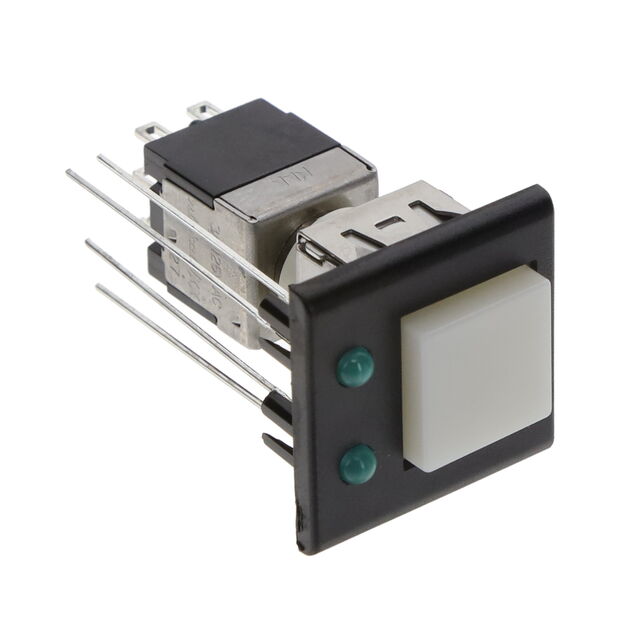

EB2085-B-J33AFF

Active

NKK Switches

LIGHT TOUCH MINIATURE PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EB2085-B-J33AFF

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	3 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination Type, Color	LED, Green/Green
Illumination Voltage (Nominal)	2.25 VDC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	18.4 mm
Panel Cutout Dimensions [y]	15 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V

EB2085 Series

Part	Features	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage Rating - AC	Electrical Life	Type	Panel Cutout Dimensions [diameter]	Switch Function	Circuit	Mounting Type	Actuator Marking	Color - Actuator/Cap	Termination Style	Current Rating (Amps)	Actuator Type	Mechanical Life	Illumination Type, Color	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Voltage (Nominal)	Voltage Rating - DC
NKK Switches EB2085P-BA	Epoxy Sealed Terminals	-10 °C	158 °F	125 V	25000 Steps	Standard	0.25 in	On-On	DPDT	Panel Mount Rear	No Marking	Black	PC Pin	3 A	Button Round	100000 Cycles
NKK Switches EB2085-C-J33ACC	Epoxy Sealed Terminals	-10 °C	158 °F	125 V	25000 Steps	Illuminated Standard		On-On	DPDT	Panel Mount Snap-In	No Marking	Red	Solder Lug	3 A	Button Square	100000 Cycles	LED Red/Red	15 mm	18.4 mm	2 VDC
NKK Switches EB2085-A-J50	Epoxy Sealed Terminals	-10 °C	158 °F	125 V	25000 Steps	Standard		On-On	DPDT	Panel Mount Snap-In	No Marking	Black	Solder Lug	3 A	Button Square	100000 Cycles		12.5 mm	15 mm
NKK Switches EB2085G	Epoxy Sealed Terminals	-10 °C	158 °F	28 V	50000 Cycles	Standard	0.25 in	On-On	DPDT	Panel Mount Rear	No Marking		Solder Lug	0.4 VA	Plunger for Cap	100000 Cycles					28 V
NKK Switches EB2085-C-J32AC	Epoxy Sealed Terminals	-10 °C	158 °F	125 V	25000 Steps	Illuminated Standard		On-On	DPDT	Panel Mount Snap-In	No Marking	Red	Solder Lug	3 A	Button Square	100000 Cycles	LED Red	12.5 mm	15 mm	2.8 VDC
NKK Switches EB2085P-A-J34ACE	Epoxy Sealed Terminals	-10 °C	158 °F	125 V	25000 Steps	Illuminated Standard		On-On	DPDT	Panel Mount Snap-In	No Marking	Black	PC Pin	3 A	Button Square	100000 Cycles	LED Red/Yellow	15 mm	18.4 mm	1.9 VDC 2 VDC
NKK Switches EB2085-CC	Epoxy Sealed Terminals	-10 °C	158 °F	125 V	25000 Steps	Standard	0.25 in	On-On	DPDT	Panel Mount Rear	No Marking	Red	Solder Lug	3 A	Button Round	100000 Cycles
NKK Switches EB2085G-B-J51C	Epoxy Sealed Terminals	-10 °C	158 °F	28 V	50000 Cycles	Standard		On-On	DPDT	Panel Mount Snap-In	No Marking	White	Solder Lug	0.4 VA	Button Square	100000 Cycles		12.5 mm	15 mm		28 V
NKK Switches EB2085-A-J31A	Epoxy Sealed Terminals	-10 °C	158 °F	125 V	25000 Steps	Standard		On-On	DPDT	Panel Mount Snap-In	No Marking	Black	Solder Lug	3 A	Button Square	100000 Cycles		12.5 mm	15 mm
NKK Switches EB2085-B-J33AFF	Epoxy Sealed Terminals	-10 °C	158 °F	125 V	25000 Steps	Illuminated Standard		On-On	DPDT	Panel Mount Snap-In	No Marking	White	Solder Lug	3 A	Button Square	100000 Cycles	Green/Green LED	15 mm	18.4 mm	2.25 VDC
