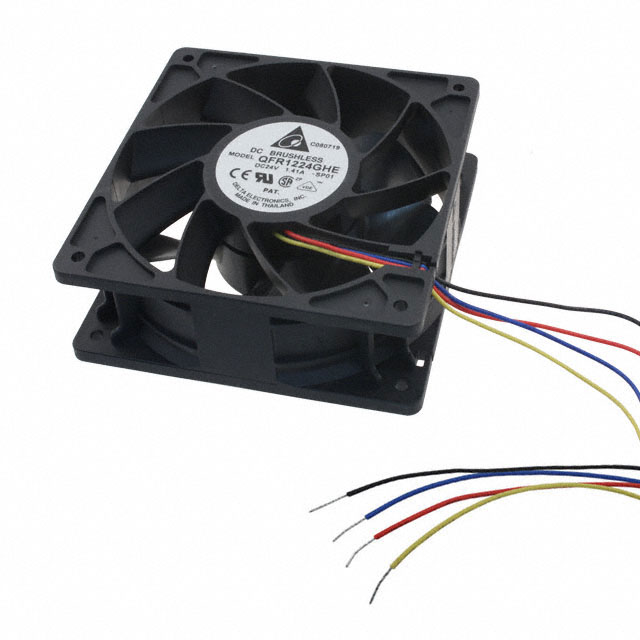

QFR1224GHE-SP01

Active

Delta Electronics

FAN AXIAL 120X38MM 24VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 120X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	QFR1224GHE-SP01

Air Flow	5.89 m³/min
Air Flow	210.4 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.94 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	64 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	22.56 W
RPM	6000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	291.4 Pa
Static Pressure	1.17 in H2O
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	16 VDC
Weight	330.22 g
Weight	0.728 lb
Width [y]	38 mm

Part	Air Flow	Air Flow	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Noise	Static Pressure	Static Pressure	Material - Blade	Bearing Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Weight	Weight	Fan Type	Width [y]	RPM	Lifetime @ Temp.	Power (Watts)	Approval Agency	Current Rating (Amps)	Features	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Termination
Delta Electronics QFR1224GHE-SP01	5.89 m³/min	210.4 CFM	24 VDC	16 VDC	26.4 VDC	64 dB(A)	291.4 Pa	1.17 in H2O	Plastic	Ball	-10 °C	-10 °C	60 °C	60 °C	330.22 g	0.728 lb	Tubeaxial	38 mm	6000 RPM	50000 Hrs	22.56 W	CE CSA UL VDE	0.94 A	Locked Rotor Protection PWM Control Speed Sensor (Tach)	120 mm	120 mm	Plastic	4 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 210.4 CFM (5.89m³/min) 4 Wire Leads
