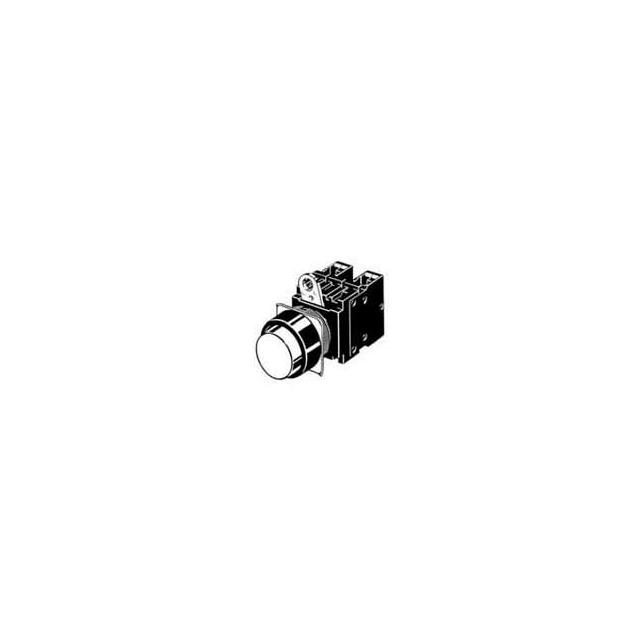

A22TR10M

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 10A 110V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 10A 110V

Technical Specifications

Parameters and characteristics for this part

Specification	A22TR10M

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Electrical Life	500000 Cycles
Ingress Protection	IP65
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	110 V
Voltage Rating - DC	24 V

Part	Ingress Protection	Voltage Rating - DC	Switch Function	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Electrical Life	Actuator Type	Type	Voltage Rating - AC	Color - Actuator/Cap	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Circuit	Mechanical Life
Omron Electronics Inc-EMC Div A22TR10M	IP65	24 V	Off-Mom	No Marking	-20 C	70 °C	Panel Mount Front	Screw Terminal	500000 Cycles	Button Round	Standard	110 V	Red	10 A	22.3 mm	SPST-NO	5000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 19.90

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Technical documentation and resources

No documents available
