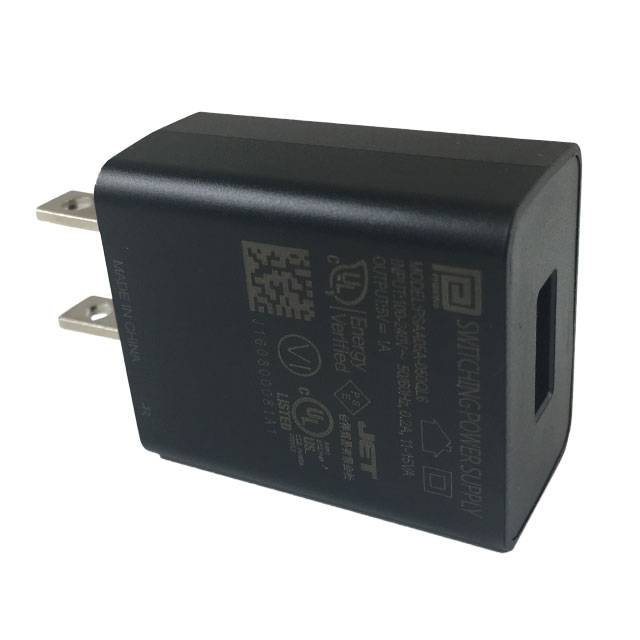

PSAA05A-050QL6-R

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	PSAA05A-050QL6-R

Applications	ITE (Commercial)
Approval Agency	PSE, cULus
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	5 W
Region Utilized	North America
Size / Dimension [x]	55.6 mm
Size / Dimension [x]	2.19 in
Size / Dimension [y]	33.5 mm
Size / Dimension [y]	1.32 in
Size / Dimension [z]	0.82 in
Size / Dimension [z]	20.8 mm
Standard Number	55032, 62368-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	0.055 lb
Weight	24.95 g

Part	Input Type	Power (Watts)	Applications	Input Connector	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Approval Agency	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Form	No Load Power Consumption [Max]	Efficiency	Weight	Weight	Region Utilized	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Phihong USA PSAA05A-050QL6-R	Fixed Blade	5 W	ITE (Commercial)	NEMA 1-15P	55032 60950-1 62368-1	90 VAC	264 VAC	1 A	cULus PSE	5 V	-10 °C	45 °C	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	0.055 lb	24.95 g	North America	0.82 in	20.8 mm	55.6 mm	33.5 mm	2.19 in	1.32 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
