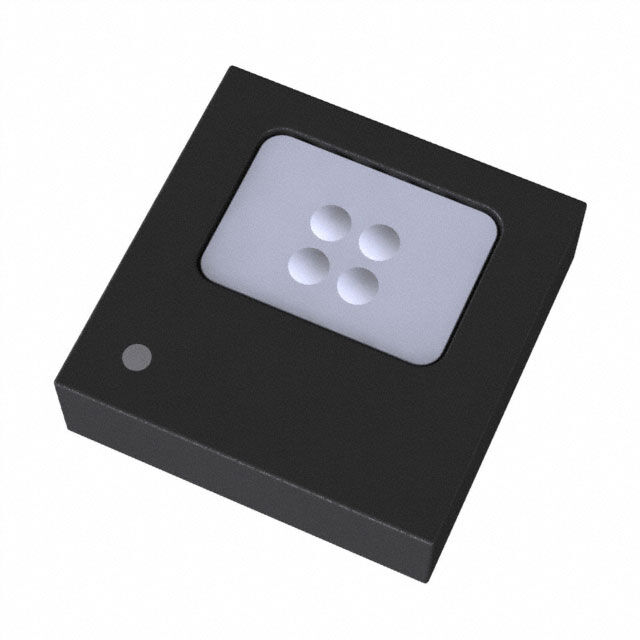

MLX90632SLD-BCB-000-RE

Active

Melexis Technologies NV

SENSOR DGTL -20C-85C 5SFN

Search across all available documentation for this part.

Active

Melexis Technologies NV

SENSOR DGTL -20C-85C 5SFN

Technical Specifications

Parameters and characteristics for this part

Specification	MLX90632SLD-BCB-000-RE

Accuracy - Highest (Lowest)	1 °C, 4 °C
Features	Sleep Mode
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Output Type	I2C
Package / Case	5-TFSFN Exposed Pad
Sensing Temperature - Local [Max]	85 °C
Sensing Temperature - Local [Min]	-20 °C
Sensing Temperature - Remote [Max]	200 °C
Sensing Temperature - Remote [Min]	-20 °C
Sensor Type	Infrared (IR), Digital
Supplier Device Package	5-SFN (3x3)
Test Condition [Max]	85 °C
Test Condition [Min]	-20 °C
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Features	Sensing Temperature - Remote [Max]	Sensing Temperature - Remote [Min]	Supplier Device Package	Sensor Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Package / Case	Test Condition [Min]	Test Condition [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy - Highest (Lowest)	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Output Type
Melexis Technologies NV MLX90632SLD-BCB-000-RE	Sleep Mode	200 °C	-20 °C	5-SFN (3x3)	Digital Infrared (IR)	3.6 V	3 V	Surface Mount	5-TFSFN Exposed Pad	-20 °C	85 °C	85 °C	-20 C	1 °C 4 °C	85 °C	-20 °C	I2C
Melexis Technologies NV MLX90632SLD-DCB-000-SP	Sleep Mode	200 °C	-20 °C	5-SFN (3x3)	Digital Infrared (IR)	3.6 V	3 V	Surface Mount	5-TFSFN Exposed Pad	-20 °C	80 °C	85 °C	-20 C	0.2 °C	85 °C	-20 °C	I2C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Temperature Sensor Digital, Infrared (IR) -20°C ~ 85°C 5-SFN (3x3)
