45S201-400L5

Active

Rosenberger

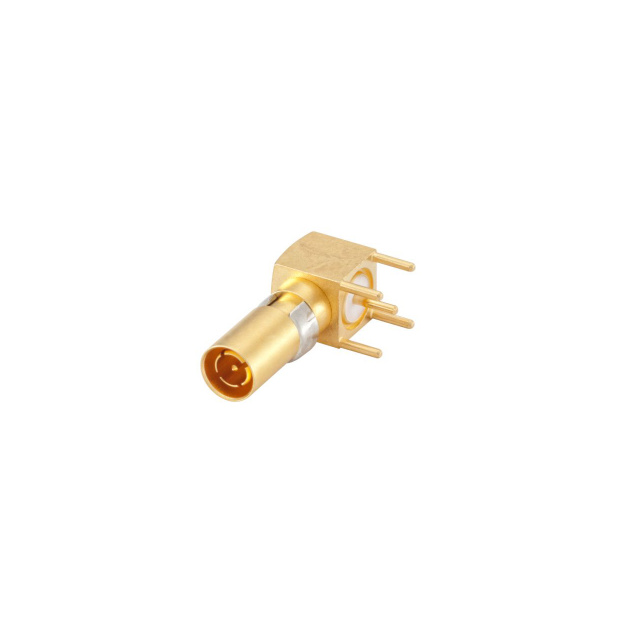

1.0/2.3 RIGHT ANGLE PLUG PCB

Search across all available documentation for this part.

Active

Rosenberger

1.0/2.3 RIGHT ANGLE PLUG PCB

Technical Specifications

Parameters and characteristics for this part

Specification	45S201-400L5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Fastening Type	Connector Style	Mounting Type	Body Material	Number of Ports	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Frequency - Max [Max]	Mating Cycles	Connector Type	Contact Termination	Cable Group	Dielectric Material	Shield Termination	Body Finish	Impedance	Housing Color	Voltage Rating
Rosenberger 45S201-303L5	Push-Pull	1.0/2.3	Free Hanging (In-Line) Right Angle	Brass	1	Gold	-55 °C	125 °C	Beryllium Copper	2 GHz	500	Male Pin Plug	Crimp	RG-316	Polytetrafluoroethylene (PTFE)	Crimp	Gold	50 Ohms	Gold	250 VDC
Rosenberger 45S201-400L5	Push-Pull	1.0/2.3	Through Hole Right Angle	Brass	1	Gold	-55 °C	125 °C	Beryllium Copper	4 GHz	500	Male Pin Plug	Solder		Polytetrafluoroethylene (PTFE)	Solder	Gold	50 Ohms	Gold	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.0/2.3 Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
