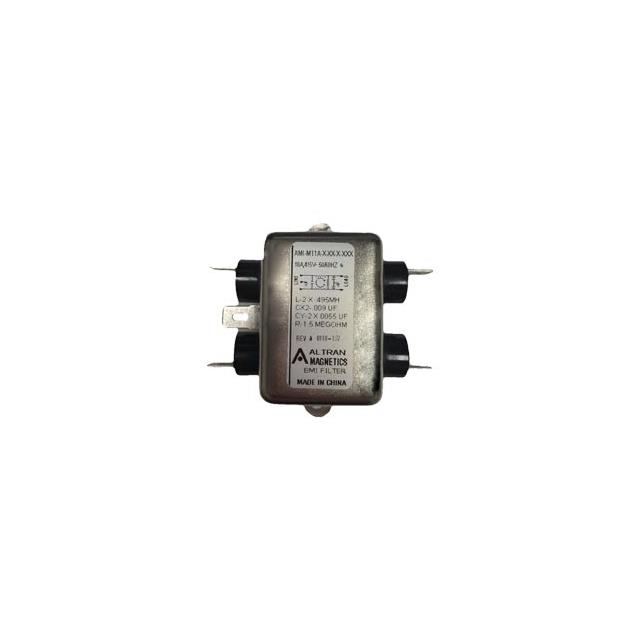

AMI-M11A-3-10-B

Active

Altran Magnetics, LLC

POWER LINE FILTER GENERAL PURPOSE RFI 50HZ/60HZ 10A 250VAC WIRE LEAD CHASSIS MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMI-M11A-3-10-B

Active

Altran Magnetics, LLC

POWER LINE FILTER GENERAL PURPOSE RFI 50HZ/60HZ 10A 250VAC WIRE LEAD CHASSIS MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMI-M11A-3-10-B

Applications	General Purpose
Configuration	Single Stage
Current	10 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	495 µH
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Termination Style	Wire Leads
Voltage - Rated AC	250 V

AMI-M11A Series

Part	Applications	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Inductance	Mounting Type	Voltage - Rated AC	Configuration	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current
Altran Magnetics, LLC AMI-M11A-1-1-B	General Purpose	Single Phase	60 Hz	50 Hz	1.86 mH	Chassis Mount	250 V	Single Stage	Quick Connect	-10 °C	40 °C	1 A
Altran Magnetics, LLC AMI-M11A-1-5-B	General Purpose	Single Phase	60 Hz	50 Hz	500 µH	Chassis Mount	250 V	Single Stage	Quick Connect	-10 °C	40 °C	5 A
Altran Magnetics, LLC AMI-M11A-6-20-D	General Purpose	Single Phase	60 Hz	50 Hz	440 µH	Chassis Mount	250 V	Single Stage	Quick Connect	-10 °C	40 °C	20 A
Altran Magnetics, LLC AMI-M11A-3-10-B	General Purpose	Single Phase	60 Hz	50 Hz	495 µH	Chassis Mount	250 V	Single Stage	Wire Leads	-10 °C	40 °C	10 A
Altran Magnetics, LLC AMI-M11A-1-2-D	General Purpose	Single Phase	60 Hz	50 Hz	539 µH	Chassis Mount	250 V	Single Stage	Quick Connect	-10 °C	40 °C	2 A
Altran Magnetics, LLC AMI-M11A-3-1-B	General Purpose	Single Phase	60 Hz	50 Hz	1.86 mH	Chassis Mount	250 V	Single Stage	Wire Leads	-10 °C	40 °C	1 A
Altran Magnetics, LLC AMI-M11A-3-3-D	General Purpose	Single Phase	60 Hz	50 Hz	1.76 mH	Chassis Mount	250 V	Single Stage	Wire Leads	-10 °C	40 °C	3 A
Altran Magnetics, LLC AMI-M11A-1-20-B	General Purpose	Single Phase	60 Hz	50 Hz	440 µH	Chassis Mount	250 V	Single Stage	Quick Connect	-10 °C	40 °C	20 A
Altran Magnetics, LLC AMI-M11A-1-10-B	General Purpose	Single Phase	60 Hz	50 Hz	495 µH	Chassis Mount	250 V	Single Stage	Quick Connect	-10 °C	40 °C	10 A
Altran Magnetics, LLC AMI-M11A-3-3-B	General Purpose	Single Phase	60 Hz	50 Hz	1.76 mH	Chassis Mount	250 V	Single Stage	Wire Leads	-10 °C	40 °C	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.91
		10	$ 11.35
		25	$ 10.46
		50	$ 9.84

Description

General part information

AMI-M11A Series

Single Phase EMC/EMI Line Filter 10 A 250V 50/60Hz Single Stage Wire Leads
