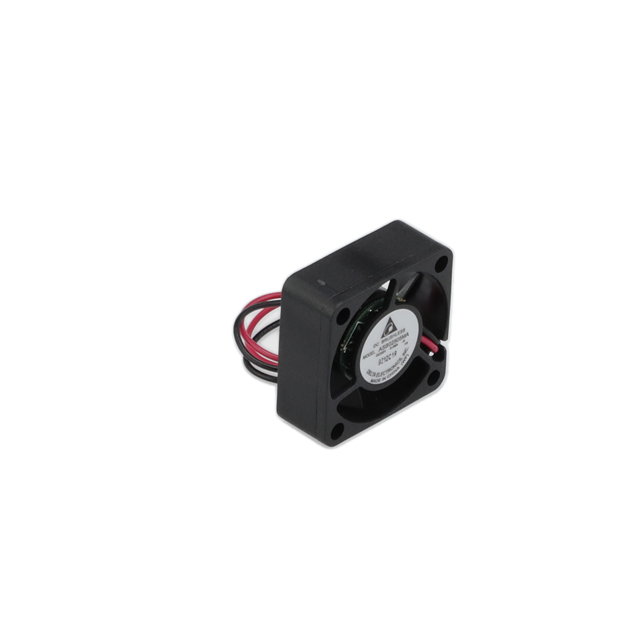

ASB02505MA-A

NRND

Delta Electronics

FAN AXIAL 25X10MM 5VDC WIRE

Search across all available documentation for this part.

NRND

Delta Electronics

FAN AXIAL 25X10MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Material - Frame	Features	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Lifetime @ Temp.	Air Flow	Air Flow	Noise	Weight	Weight	Termination	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Power (Watts)	Material - Blade	RPM	Bearing Type	Width [y]	Current Rating (Amps)
Delta Electronics ASB02505HA-A7JV	Plastic	Locked Rotor Protection Speed Sensor (Tach)	0.114 in H2O	28.4 Pa	4 VDC	5.5 V	5 V	30000 Hrs	2.2 CFM	0.061 m³/min	18 dB(A)	0.014 lb	6.35 g	3 Wire Leads	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	450 mW	Plastic	9000 RPM	Sleeve	10 mm	0.09 A
Delta Electronics ASB02505MA-A	Plastic		0.08 in H2O	20 Pa	4 VDC	6 VDC	5 V	20000 Hrs			11 dB(A)	0.018 lb	8.16 g	2 Wire Leads	25 mm	25 mm	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	300 mW	Plastic	7000 RPM	Sleeve	10 mm	60 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 25mm L x 25mm H Sleeve 1.6 CFM (0.045m³/min) 2 Wire Leads
