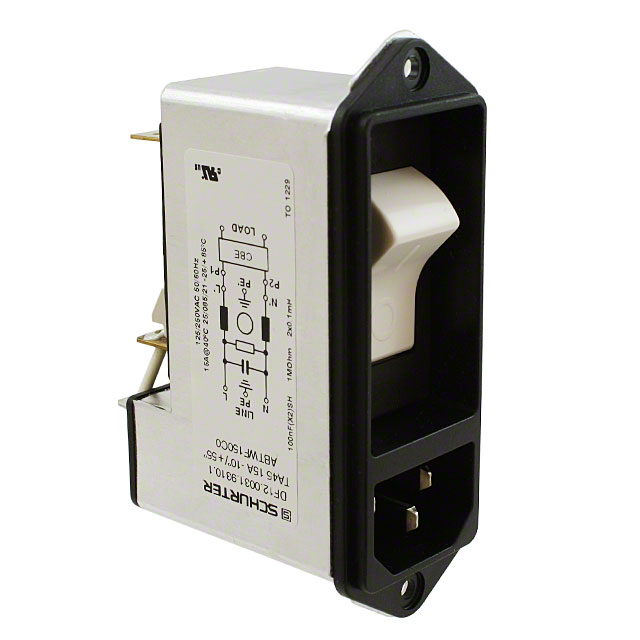

DF12.0031.9310.1

Active

SCHURTER Inc.

AC POWER ENTRY MODULES 15 A 1 POLE PROT SCREW MOUNT W/FILTER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPEM Filter Overview Datasheet

DF12.0031.9310.1

Active

SCHURTER Inc.

AC POWER ENTRY MODULES 15 A 1 POLE PROT SCREW MOUNT W/FILTER

Deep-Dive with AI

DocumentsPEM Filter Overview Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF12.0031.9310.1

Accomodates a Fuse	False
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Circuit Breaker	15 A
Current Rating - Filter	15 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	30.8 mm
Panel Cutout Dimensions [y]	75.5 mm
Switch Features	Circuit Breaker, Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

DF12.0470 Series

AC Power Entry Modules DF12 .ABDBP150C0 15A

Part	Switch Features	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Termination	Connector Style	Voltage Rating - Appliance Inlet	Mounting Type	Material Flammability Rating	Approval Agency	Filter Type	Current Rating - Filter	Current Rating - Appliance Inlet	Current Rating - Circuit Breaker	Ingress Protection
SCHURTER Inc. DF12.0470.7310.1	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	75.5 mm	30.8 mm	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	250 VAC	Flange Panel Mount	UL94 V-0	cULus ENEC	Filtered (EMI RFI) - Commercial Medical	10 A	10 A	10 A	IP40
SCHURTER Inc. DF12.0470.9310.1	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	75.5 mm	30.8 mm	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	250 VAC	Flange Panel Mount	UL94 V-0	cULus ENEC	Filtered (EMI RFI) - Commercial Medical	10 A	10 A	10 A	IP40
SCHURTER Inc. DF12.1682.9110.1	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	75.5 mm	30.8 mm	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	250 VAC	Flange Panel Mount	UL94 V-0	cULus ENEC	Filtered (EMI RFI) - Commercial	15 A	10 A	15 A	IP40
SCHURTER Inc. DF12.0031.9110.1	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	75.5 mm	30.8 mm	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	250 VAC	Flange Panel Mount	UL94 V-0	cULus ENEC	Filtered (EMI RFI) - Commercial	15 A	10 A	15 A	IP40
SCHURTER Inc. DF12.0031.9310.1	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	75.5 mm	30.8 mm	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	250 VAC	Flange Panel Mount	UL94 V-0	cULus ENEC	Filtered (EMI RFI) - Commercial Medical	15 A	10 A	15 A	IP40
SCHURTER Inc. DF12.0470.7110.1	Circuit Breaker Switch On-Off	Receptacle Male Blades - Module	75.5 mm	30.8 mm	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	250 VAC	Flange Panel Mount	UL94 V-0	cULus ENEC	Filtered (EMI RFI) - Commercial	10 A	10 A	10 A	IP40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 65.59
		50	$ 45.23
		100	$ 44.53
Sager	N/A	1	$ 51.24
		13	$ 49.87
		27	$ 48.58
		134	$ 46.18
		267	$ 45.06

Description

General part information

DF12.0470 Series

AC Power Entry Modules DF12 .ABDBP150C0 15A

Documents

Technical documentation and resources

PEM Filter Overview

Datasheet

Document
