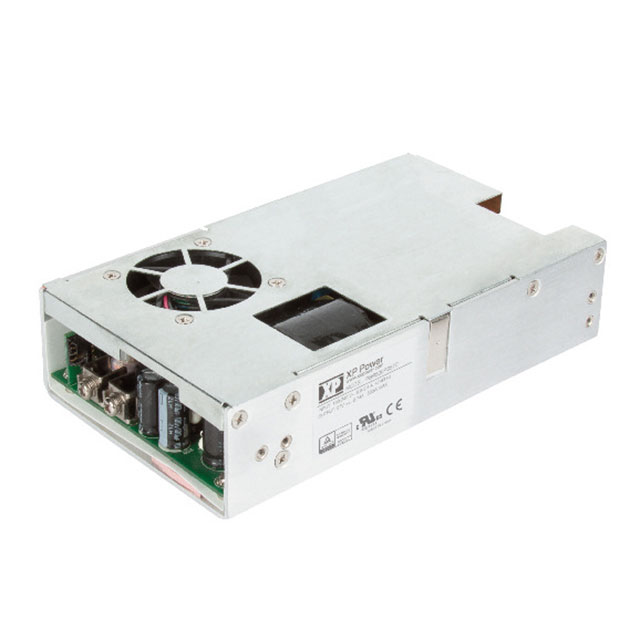

PBR500PS12C

Active

XP POWER

AC/DC CONVERTER 12V 350W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PBR500PS12C

Active

XP POWER

AC/DC CONVERTER 12V 350W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBR500PS12C

Applications	ITE (Commercial), Medical
Approval Agency	UL, TUV, CB
Current - Output 1	29.17 A
Efficiency	90 %
Features	Universal Input, Remote Sense, Standby Output
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	350 W, 450 W
Size / Dimension [x]	177.8 mm
Size / Dimension [x]	7 "
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	1.7 in
Size / Dimension [z]	43.2 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

PBR500 Series

Part	Current - Output 1	Power (Watts)	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Voltage - Isolation	Approval Agency	Type	Voltage - Output 1	Applications	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Features	Power (Watts)
XP POWER PBR500PS12B	29.17 A	350 W 450 W	62368-1	-10 °C	70 °C	4 "	101.6 mm	42.7 mm	7 "	1.68 "	177.8 mm	Chassis Mount	4000 V	CB TUV UL	Open Frame	12 V	ITE (Commercial) Medical	90 %	264 VAC	80 VAC	1	Remote Sense Standby Output Universal Input
XP POWER PBR500PS24B	16.67 A	400 W	62368-1	-10 °C	70 °C	4 "	101.6 mm	42.7 mm	7 "	1.68 "	177.8 mm	Chassis Mount	4000 V	CB TUV UL	Open Frame	24 V	ITE (Commercial) Medical	90 %	264 VAC	80 VAC	1	Remote Sense Standby Output Universal Input	500 W
XP POWER PBR500PS48B	8.34 A	400 W	62368-1	-10 °C	70 °C	4 "	101.6 mm	42.7 mm	7 "	1.68 "	177.8 mm	Chassis Mount	4000 V	CB TUV UL	Open Frame	48 V	ITE (Commercial) Medical	90 %	264 VAC	80 VAC	1	Remote Sense Standby Output Universal Input	500 W
XP POWER PBR500PS36B	11.12 A	400 W	62368-1	-10 °C	70 °C	4 "	101.6 mm	42.7 mm	7 "	1.68 "	177.8 mm	Chassis Mount	4000 V	CB TUV UL	Open Frame	36 V	ITE (Commercial) Medical	90 %	264 VAC	80 VAC	1	Remote Sense Standby Output Universal Input	500 W
XP POWER PBR500PS12C	29.17 A	350 W 450 W	62368-1	-10 °C	70 °C	4 "	101.6 mm	43.2 mm	7 "	1.7 in	177.8 mm	Chassis Mount	4000 V	CB TUV UL	Enclosed	12 V	ITE (Commercial) Medical	90 %	264 VAC	80 VAC	1	Remote Sense Standby Output Universal Input
XP POWER PBR500PS36C	11.12 A	400 W	62368-1	-10 °C	70 °C	4 "	101.6 mm	43.2 mm	7 "	1.7 in	177.8 mm	Chassis Mount	4000 V	CB TUV UL	Enclosed	36 V	ITE (Commercial) Medical	90 %	264 VAC	80 VAC	1	Remote Sense Standby Output Universal Input	500 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 298.80
		5	$ 289.84
		10	$ 280.87
		25	$ 268.92
		100	$ 250.99

Description

General part information

PBR500 Series

Enclosed AC DC Converters 1 Output 12V 80 ~ 264 VAC Input
