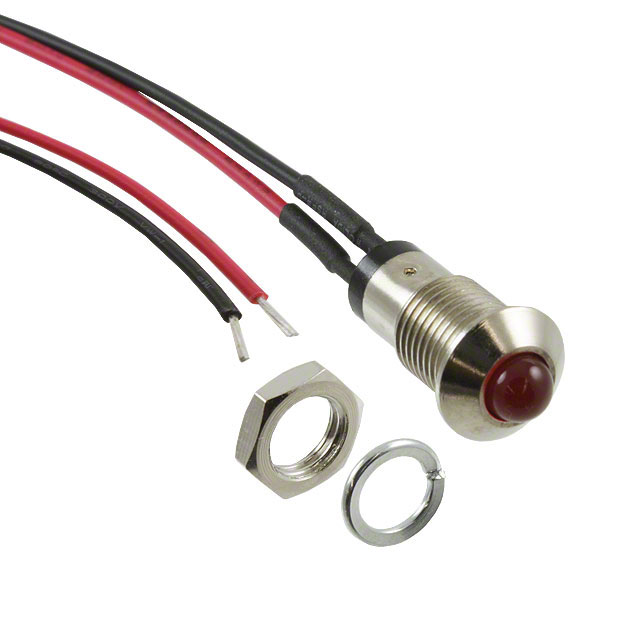

MPC5HDW12.0 - MPC5HDW12.0

MPC5HDW12.0

Active
Bivar Inc.

LED PANEL MOUNT INDICATOR, RED, 2 VDC, 8 MM, 30 MA, 25 MCD, NOT RATED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+2
MPC5HDW12.0 - MPC5HDW12.0

MPC5HDW12.0

Active
Bivar Inc.

LED PANEL MOUNT INDICATOR, RED, 2 VDC, 8 MM, 30 MA, 25 MCD, NOT RATED

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationMPC5HDW12.0
Current30 mA
Lamp ColorRed
Lens ColorRed
Lens SizeT-1 3/4
Lens Size5 mm
Lens StyleRound with Domed Top
Lens TransparencyDiffused
Millicandela Rating25 mcd
Panel Cutout Dimensions8.13 mm
Panel Cutout Dimensions0.32 in
Panel Cutout ShapeRound
Termination StyleWire Leads - 12" (304.80mm)
TypeLED
Viewing Angle45 °
Voltage2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 4.40
10$ 3.11
100$ 2.55
500$ 2.15
1000$ 1.97
2000$ 1.89
5000$ 1.85
NewarkEach 100$ 2.65
250$ 2.22
500$ 2.15

Description

General part information

MPC5HDW12.0 Series

The MPC5HDW12.0 is a HE red Panel-mount LED Indicator with wires and round diffused lens. It is made up of GaAsP/GaP construction.
