D9YAYAS5FISCU
ActiveFiber Instrument Sales

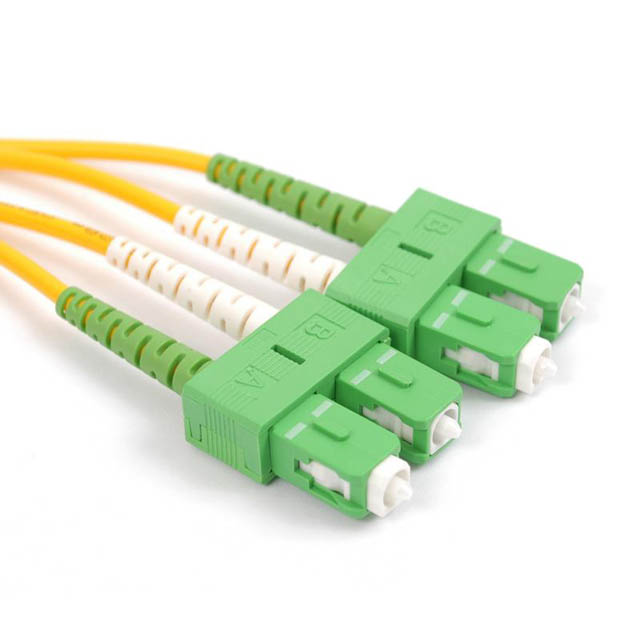

FIS DUPLEX 3MM SM 9/125 ULTRA SC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D9YAYAS5FISCU
ActiveFiber Instrument Sales
FIS DUPLEX 3MM SM 9/125 ULTRA SC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D9YAYAS5FISCU |
|---|---|
| 1st Connector | SC/APC (2) |
| 2nd Connector | SC/APC (2) |
| Cable Diameter [diameter] | 3 mm |
| Cable Diameter [diameter] | 0.12 in |
| Cable Type | Bend Insensitive Fiber (BIF) |
| Color - Cable | Yellow |
| Color - Connectors | Green, White |
| Fiber Type | 9/125 |
| Insertion Loss | 0.2 dB |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length - Overall | 5 m |
| Length - Overall | 16.4 ft |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Type | Singlemode, Duplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10 | $ 12.00 | |
Description
General part information
D9YAYAS Series
Cable Fiber Optic SC/APC (2) To SC/APC (2) 9/125 16.4' (5.0m)
