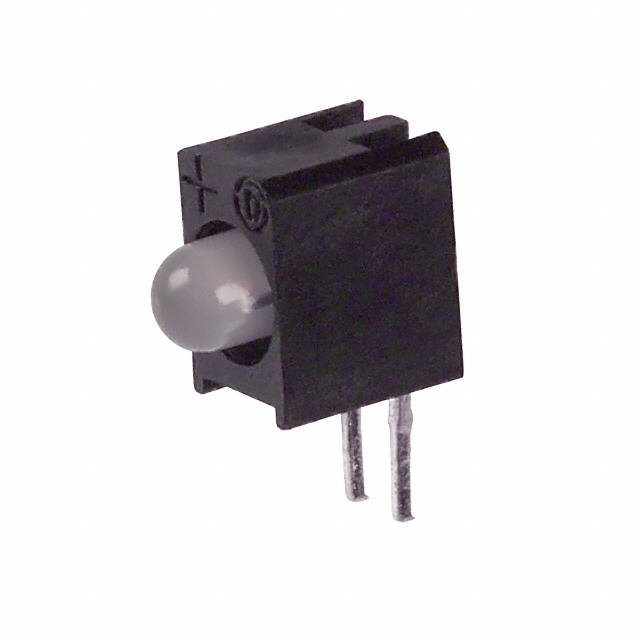

5513009F
ActiveDIALIGHT
LED CBI 3MM GRN/RED RA PCMNT
Deep-Dive with AI
Search across all available documentation for this part.
5513009F
ActiveDIALIGHT
LED CBI 3MM GRN/RED RA PCMNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5513009F |
|---|---|
| Color | Red, Green |
| Configuration | Single |
| Current | 10 mA |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Diffused |
| Millicandela Rating [custom] | 10 mcd |
| Millicandela Rating [custom] | 4.7 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 50 ° |
| Voltage Rating | 2.1 V, 2 V |
| Wavelength - Peak | 565 nm, 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.48 | |
| 10 | $ 1.62 | |||
| 100 | $ 1.18 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.96 | |||
| 2000 | $ 0.91 | |||
| 5000 | $ 0.87 | |||
| 10000 | $ 0.84 | |||
Description
General part information
5513009 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused 2.1V Green, 2V Red 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
