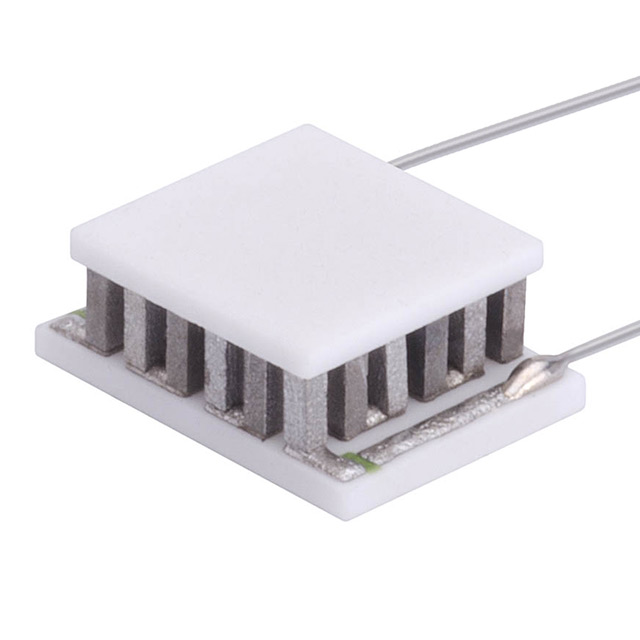

430002-501
Laird Thermal Systems, Inc.
PELTIER OT08,18,F0,0505,11,W2.25
Deep-Dive with AI
Search across all available documentation for this part.
430002-501
Laird Thermal Systems, Inc.
PELTIER OT08,18,F0,0505,11,W2.25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430002-501 |
|---|---|
| Current - Max [Max] | 800 mA |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 2.44 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 1 W |
| Resistance | 2.35 Ohms |
| Size / Dimension [x] | 6.5 mm |
| Size / Dimension [y] | 4.9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.20 | |
| 5 | $ 33.00 | |||
| 10 | $ 32.20 | |||
| 25 | $ 31.00 | |||
| 50 | $ 30.20 | |||
| 100 | $ 29.40 | |||
Description
General part information
430002 Series
Peltier Module 1.0W @ 25°C 0.8 A 80°C
