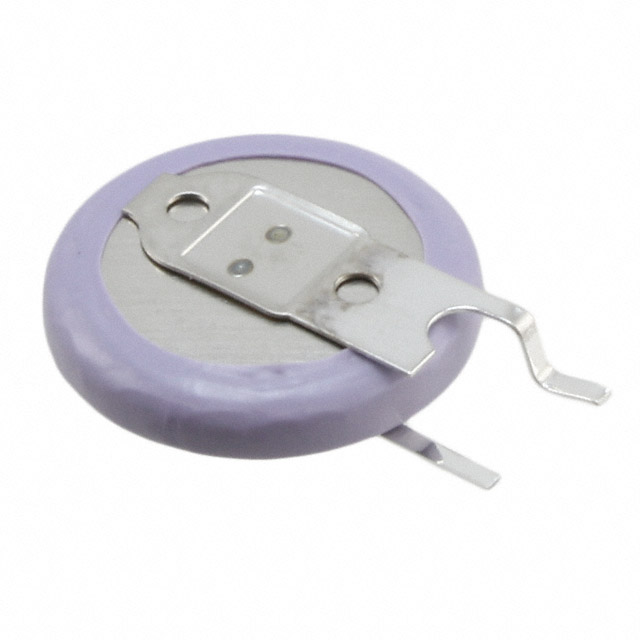

ML-1220/F1BN
ObsoletePanasonic Industrial Automation Sales
BATT LITH 3V 17MAH COIN 12.5MM
Deep-Dive with AI
Search across all available documentation for this part.
ML-1220/F1BN
ObsoletePanasonic Industrial Automation Sales
BATT LITH 3V 17MAH COIN 12.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ML-1220/F1BN |
|---|---|
| Battery Cell Size | 12.5 mm |
| Battery Cell Size | Coin |
| Battery Chemistry | Lithium |
| Capacity | 17 mAh |
| Discharge Rate | 30 µA |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [diameter] | 0.49 in |
| Size / Dimension [diameter] | 12.5 mm |
| Size / Dimension [z] | 0.08 in |
| Size / Dimension [z] | 2 mm |
| Standard Charge Current | 1.2 mA |
| Termination Style | PC Pin (Vertical Mount) |
| Voltage - Rated | 3 VDC |
| Weight | 0.8 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.39 | |
| 20 | $ 1.39 | |||
| 40 | $ 1.39 | |||
| 100 | $ 1.39 | |||
| 300 | $ 1.39 | |||
| 500 | $ 1.38 | |||
| 1000 | $ 1.38 | |||
| 2500 | $ 1.38 | |||
Description
General part information
ML-1220 Series
Coin, 12.5mm 3 V Lithium Battery Rechargeable (Secondary) 17mAh
