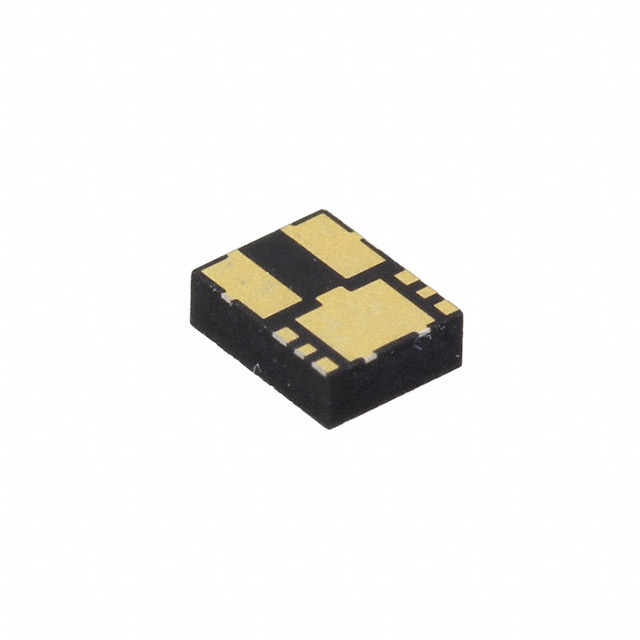

XCL214B303DR

Obsolete

Torex Semiconductor Ltd

DC DC CONVERTER 3V 5W

Search across all available documentation for this part.

Obsolete

Torex Semiconductor Ltd

DC DC CONVERTER 3V 5W

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Mounting Type	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Input (Min) [Min]	Type	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 1	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency
Torex Semiconductor Ltd XCL214B173DR	USP-9B01	Surface Mount	9-PowerTFQFN
Torex Semiconductor Ltd XCL214B253DR	USP-9B01	Surface Mount	9-PowerTFQFN	1.5 A	-40 °C	105 ░C	OCP OTP SCP UVLO	2.7 V	Non-Isolated PoL Module	5.5 V	1	2.5 V	ITE (Commercial)	0.04 in	3.2 mm	0.13 in	1 mm	2.5 mm	0.1 in	92 %
Torex Semiconductor Ltd XCL214B113DR	USP-9B01	Surface Mount	9-PowerTFQFN
Torex Semiconductor Ltd XCL214B303DR	USP-9B01	Surface Mount	9-PowerTFQFN	1.5 A	-40 °C	105 ░C	OCP OTP SCP UVLO	2.7 V	Non-Isolated PoL Module	5.5 V	1	3 V	ITE (Commercial)	0.04 in	3.2 mm	0.13 in	1 mm	2.5 mm	0.1 in	92 %
Torex Semiconductor Ltd XCL214B153DR	USP-9B01	Surface Mount	9-PowerTFQFN	1.5 A	-40 °C	105 ░C	OCP OTP SCP UVLO	2.7 V	Non-Isolated PoL Module	5.5 V	1	1.5 V	ITE (Commercial)	0.04 in	3.2 mm	0.13 in	1 mm	2.5 mm	0.1 in	92 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 3V 1.5A 2.7V - 5.5V Input

Technical documentation and resources

No documents available
