FX5-60P-DSL(71)

Active

Hirose Electric USA, Inc.

1.0MM PITCH BOARD TO BOARD CONNECTORS FOR VERTICAL CONNECTION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFX5-60P-DSL(71) Spec Datasheet

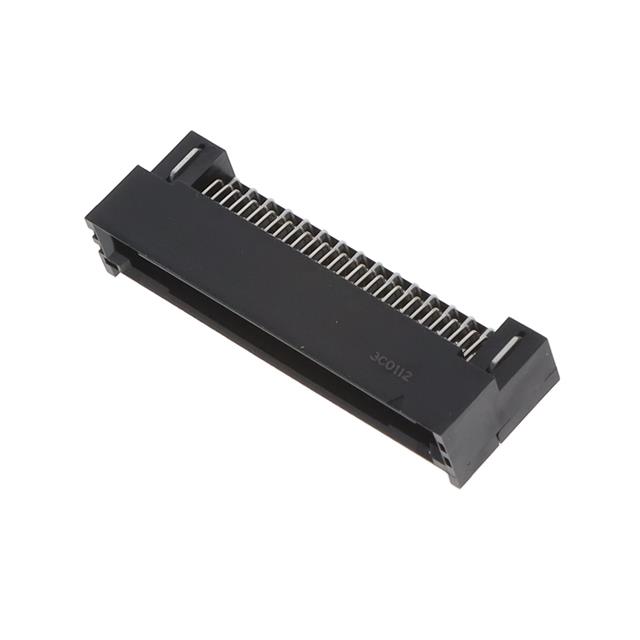

FX5-60P-DSL(71)

Active

Hirose Electric USA, Inc.

1.0MM PITCH BOARD TO BOARD CONNECTORS FOR VERTICAL CONNECTION

Deep-Dive with AI

DocumentsFX5-60P-DSL(71) Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX5-60P-DSL(71)

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Mounting Type	Through Hole, Right Angle
Number of Positions	60
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

FX5 Series

Part	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Contact Finish	Height Above Board	Height Above Board	Number of Positions	Height Above Board [z]	Height Above Board [z]	Features	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. FX5-52S2A-DSA	Through Hole	0.039 in	1 mm	2	Receptacle Outer Shroud Contacts	Gold	9.3 mm	0.366 in	52
Hirose Electric USA, Inc. FX5-20S2A-DSA	Through Hole	0.039 in	1 mm	2	Receptacle Outer Shroud Contacts	Gold	9.3 mm	0.366 in	20
Hirose Electric USA, Inc. FX5-52P-SH3(71)	Surface Mount Right Angle	0.039 in	1 mm	2	Header Center Strip Contacts	Gold			52	9.5 mm	0.374 in	Board Guide Flange
Hirose Electric USA, Inc. FX5-20P-SH(71)	Surface Mount Right Angle	0.039 in	1 mm	2	Header Center Strip Contacts	Gold	6.5 mm	0.256 in	20			Board Guide Flange
Hirose Electric USA, Inc. FX5-60P-SH09(92)	Surface Mount Right Angle	0.039 in	1 mm	2	Header Center Strip Contacts	Gold			60			Flange
Hirose Electric USA, Inc. FX5-60P-SH09(91)	Surface Mount Right Angle	0.039 in	1 mm	2	Header Center Strip Contacts	Gold			60			Flange
Hirose Electric USA, Inc. FX5-80S2A-DSAL(71)	Through Hole	0.039 in	1 mm	2	Receptacle Outer Shroud Contacts	Gold	9.3 mm	0.366 in	80
Hirose Electric USA, Inc. FX5-80P-SH3(71)	Surface Mount Right Angle	0.039 in	1 mm	2	Header Center Strip Contacts	Gold			80	9.5 mm	0.374 in	Board Guide Flange
Hirose Electric USA, Inc. FX5-52S2A-DSAL(71)	Through Hole	0.039 in	1 mm	2	Receptacle Outer Shroud Contacts	Gold	9.3 mm	0.366 in	52				4 Áin	0.1 Ám
Hirose Electric USA, Inc. FX5-60P-DSL(71)	Through Hole Right Angle	0.039 in	1 mm	2	Header Center Strip Contacts	Gold			60
