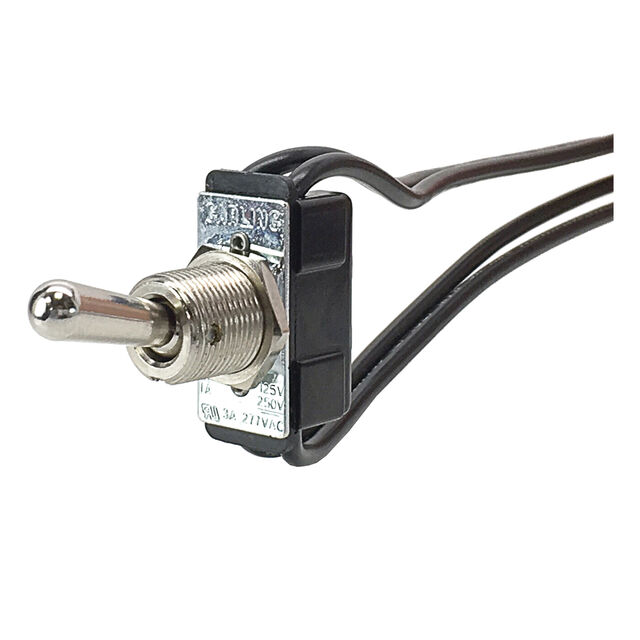

110-S-78

Active

Carling Technologies

TOGGLE SWITCH, SPST, LATCHED, 6A, 125VDC, SCREW TERMINAL, BAT TYPE ACTUATOR, PANEL MOUNT-THREADED,

Search across all available documentation for this part.

Active

Carling Technologies

TOGGLE SWITCH, SPST, LATCHED, 6A, 125VDC, SCREW TERMINAL, BAT TYPE ACTUATOR, PANEL MOUNT-THREADED,

Technical Specifications

Parameters and characteristics for this part

Specification	110-S-78

Actuator Length [x]	17.45 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	6 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Operating Temperature [Max]	65.6 °C
Operating Temperature [Min]	-17.8 °C
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Part	Voltage Rating - AC	Circuit	Current Rating (Amps)	Electrical Life	Illumination	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Switch Function	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Bushing Thread
Carling Technologies 110-S-78	125 V	SPST	6 A	25000 Steps	Non-Illuminated	Screw Terminal	65.6 °C	-17.8 °C	17.45 mm	On-Off	Standard Round	12.7 mm	125 VDC	15/32-32
Carling Technologies 110-S-73/HDW ASSM	125 V	SPST	6 A	25000 Steps	Non-Illuminated	Screw Terminal	65.6 °C	-17.8 °C	17.45 mm	On-Off	Standard Round	12.7 mm	125 VDC	15/32-32
Carling Technologies 110-S-67	125 V	SPST	6 A	25000 Steps	Non-Illuminated	Screw Terminal	65.6 °C	-17.8 °C	0.5 in	On-Off	Standard Round	12.7 mm	125 VDC	15/32-32
Carling Technologies 110-S-25/HDW ASSM	125 V	SPST	6 A	25000 Steps	Non-Illuminated	Screw Terminal	65.6 °C	-17.8 °C	9.53 mm	On-Off	Standard Round	12.7 mm	125 VDC	15/32-32

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 13.41

General part information

Toggle Switch SPST Panel Mount
