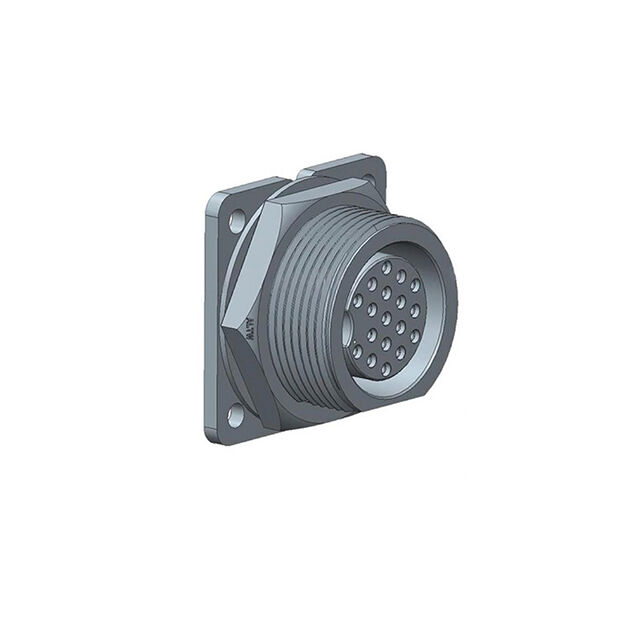

ADD-18PMFS-SS7001

Active

Amphenol LTW

LARGE STAMPING PIN

Search across all available documentation for this part.

Active

Amphenol LTW

LARGE STAMPING PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ADD-18PMFS-SS7001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut, Flange
Number of Positions	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Primary Material	Color	Insert Material	Orientation	Current Rating (Amps)	Contact Finish - Mating	Number of Positions	Connector Type	Voltage Rating	Shell Size - Insert	Contact Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Material Flammability Rating	Shell Material	Shielding	Fastening Type
Amphenol LTW ADD-18PMFS-SC7001	Plastic	Black	Polyamide (PA) Nylon Glass Filled	Keyed	5 A	Gold	18	Receptacle Female Sockets	250 VAC	D	Copper Alloy	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Bulkhead - Front Side Nut	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Unshielded
Amphenol LTW ADD-18PMFS-LS7001	Plastic	Black	Polyamide (PA) Nylon Glass Filled	Keyed	5 A	Gold	18	Receptacle Female Sockets	250 VAC	D	Copper Alloy	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Bulkhead - Front Side Nut Flange	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Unshielded	Bayonet Lock
Amphenol LTW ADD-18PMFS-SS7001	Plastic	Black	Polyamide (PA) Nylon Glass Filled	Keyed	5 A	Gold	18	Receptacle Female Sockets	250 VAC	D	Copper Alloy	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Bulkhead - Front Side Nut Flange	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 9.28

General part information

18 Position Circular Connector Receptacle, Female Sockets Solder Cup
