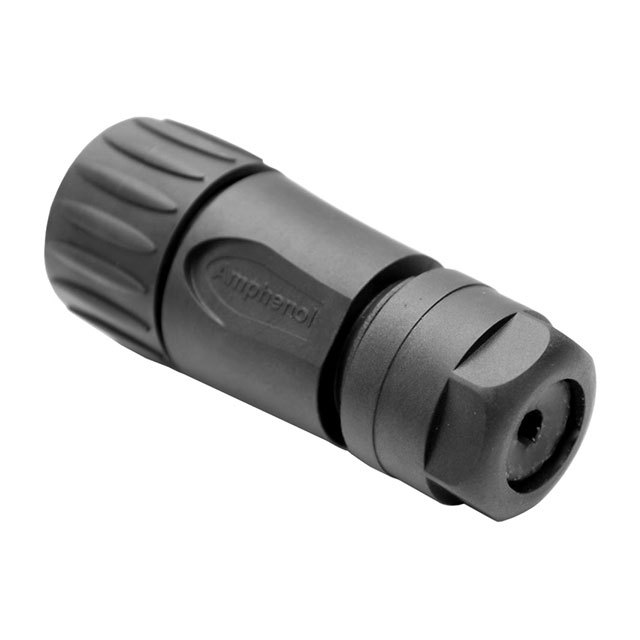

C01610D00601012

Active

Amphenol Tuchel Industrial

CONN PLG HSG FMALE 7POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLG HSG FMALE 7POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C01610D00601012

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.6 mm
Contact Type	Crimp
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black, Blue
Ingress Protection	IP67, IP65
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	1
Number of Positions [custom]	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6
Shielding	Unshielded
Type	For Female Sockets

Part	Number of Positions [custom]	Number of Positions [custom]	Shielding	Shell Material	Type	Connector Type	Contact Size	Contact Type	Mounting Type	Features	Orientation	Note	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Material Flammability Rating	Ingress Protection	Contact Shape
Amphenol Tuchel Industrial C01610D00600012	1	6	Unshielded	Polyamide (PA66) Nylon 6/6	For Female Sockets	Plug Housing	1.6 mm	Crimp	Free Hanging (In-Line)	Backshell Coupling Nut	Keyed	Contacts Not Included	125 °C	-40 °C	Black Blue	UL94 V-0	IP65 IP67	Circular
Amphenol Tuchel Industrial C01610D00601012	1	6	Unshielded	Polyamide (PA66) Nylon 6/6	For Female Sockets	Plug Housing	1.6 mm	Crimp	Free Hanging (In-Line)	Backshell Cable Clamp Coupling Nut	Keyed	Contacts Not Included	125 °C	-40 °C	Black Blue	UL94 V-0	IP65 IP67	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 (6 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
