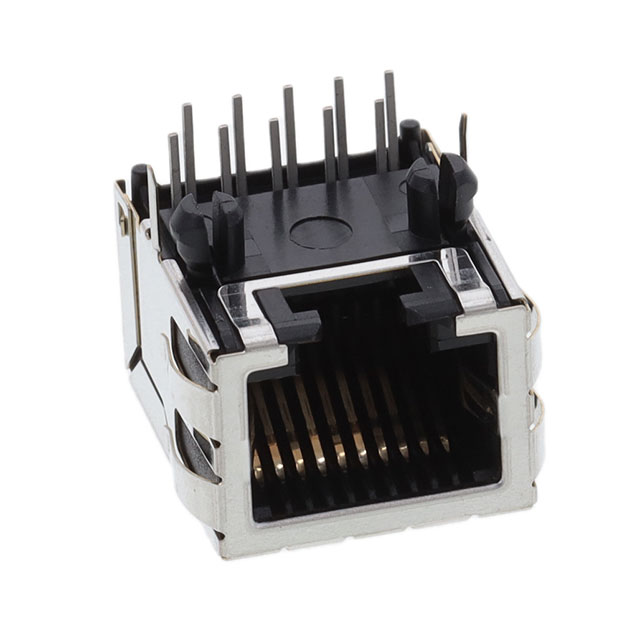

SS-701010S-A-PG4-BA

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 10P10C R/A SHLD

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 10P10C R/A SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	SS-701010S-A-PG4-BA

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts [custom]	10
Number of Positions/Contacts [custom]	10
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Number of Rows	Orientation	Mounting Type	Connector Type	Number of Ports	Contact Material	Shielding	Termination	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Tab Direction	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	LED Color
BEL MAGNETIC SOLUTIONS SS-701010S-A-PG4-BA	85 °C	-40 °C	Thermoplastic	1	90 °	Through Hole	Jack	1	Copper Alloy	Shielded EMI Finger	Solder	10	10	Down	0.76 Ám	30 Áin	Gold	Does Not Contain LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 10p10c (RJ50) 90° Angle (Right) Shielded, EMI Finger
