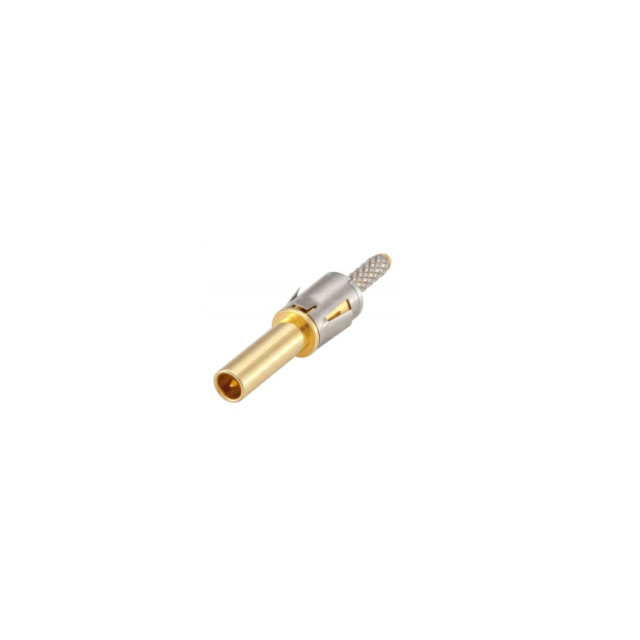

MF1S111-199L-NM

Active

Rosenberger

MF HIGH MATING CYCLE NON MAGNETI

Search across all available documentation for this part.

Active

Rosenberger

MF HIGH MATING CYCLE NON MAGNETI

Technical Specifications

Parameters and characteristics for this part

Part	Shield Termination	Voltage Rating	Center Contact Material	Connector Style	Includes	Housing Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Dielectric Material	Features	Frequency - Max [Max]	Mounting Type	Mating Cycles	Number of Ports	Fastening Type	Body Material	Impedance	Body Finish	Center Contact Plating
Rosenberger MF1S111-1H8L5-NM	Crimp	335 V	Bronze	MF	1 Connector 1 Contact 1 Ferrule	Gold	Male Pin Plug	-25 °C	85 °C	Crimp	Polytetrafluoroethylene (PTFE)	Non-Magnetic	2 GHz	Free Hanging (In-Line)	50000	1	Push-Pull	Bronze	50 Ohms	Gold	Gold
Rosenberger MF1S111-199L-NM	Crimp		Bronze	MF		Silver	Male Pin Plug	-25 °C	85 °C	Crimp		Non-Magnetic	2 GHz	Free Hanging (In-Line)	100000	1	Push-Pull	Bronze	50 Ohms		Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MF Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
